The Territory range cleverly simulates the beauty of a wide variety of natural wall cladding materials. From luxurious warm grained timbers to raw industrial precast concrete. The wall panels give designers a broad palette from which to create stunning contemporary facades.
The wall cladding panels are 16mm thick, 3030mm long and have an effective width of 455mm. They connect using a simple tongue and groove joint on the long edges. A proprietary concealed cavity fixing system holds the cladding in place. While also providing drainage and ventilation.

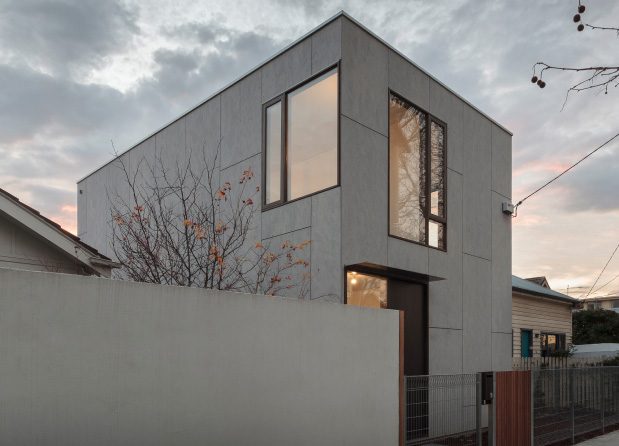

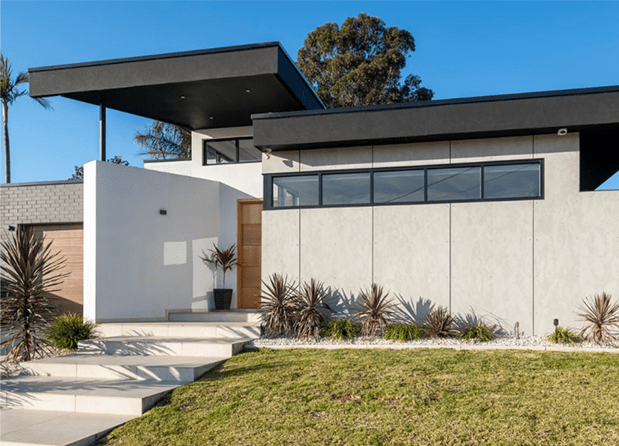

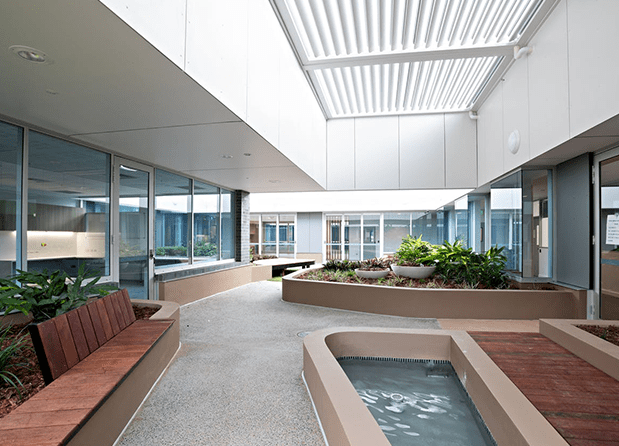

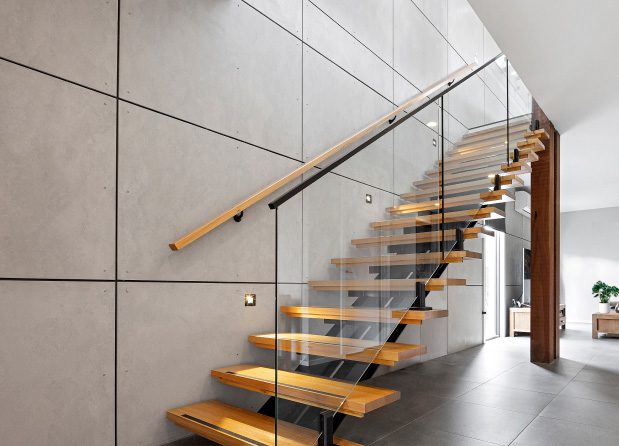

Browse the range and remember that all these wonderful choices are compatible with the Barestone and Surround ranges too.
* The Territory cladding system achieves EW classification. This is in accordance with Australian Standard AS5113. It’s achieved when cavity barriers, non-combustible components and non-combustible insulation are used.
Application
-

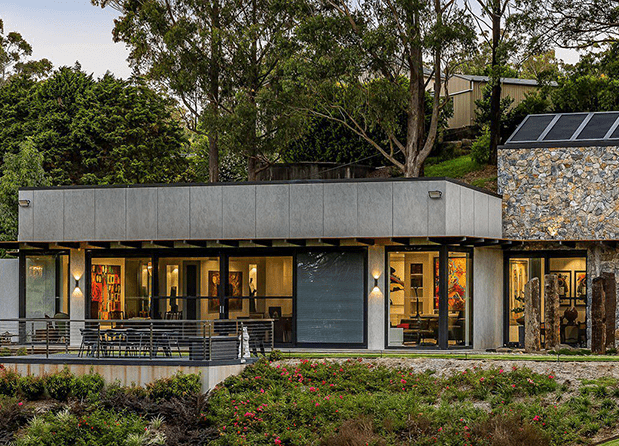

Apartment Facades
Commercial -

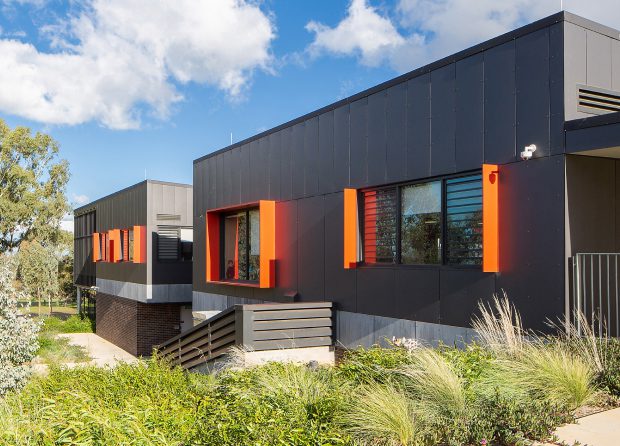

Commercial Facades
Commercial -
External Cladding
Residential -
Feature Walls
Residential -
Internal Linings
Residential
The Collection
Ridge
Canyon
Quarry
Savanna
Woodlands

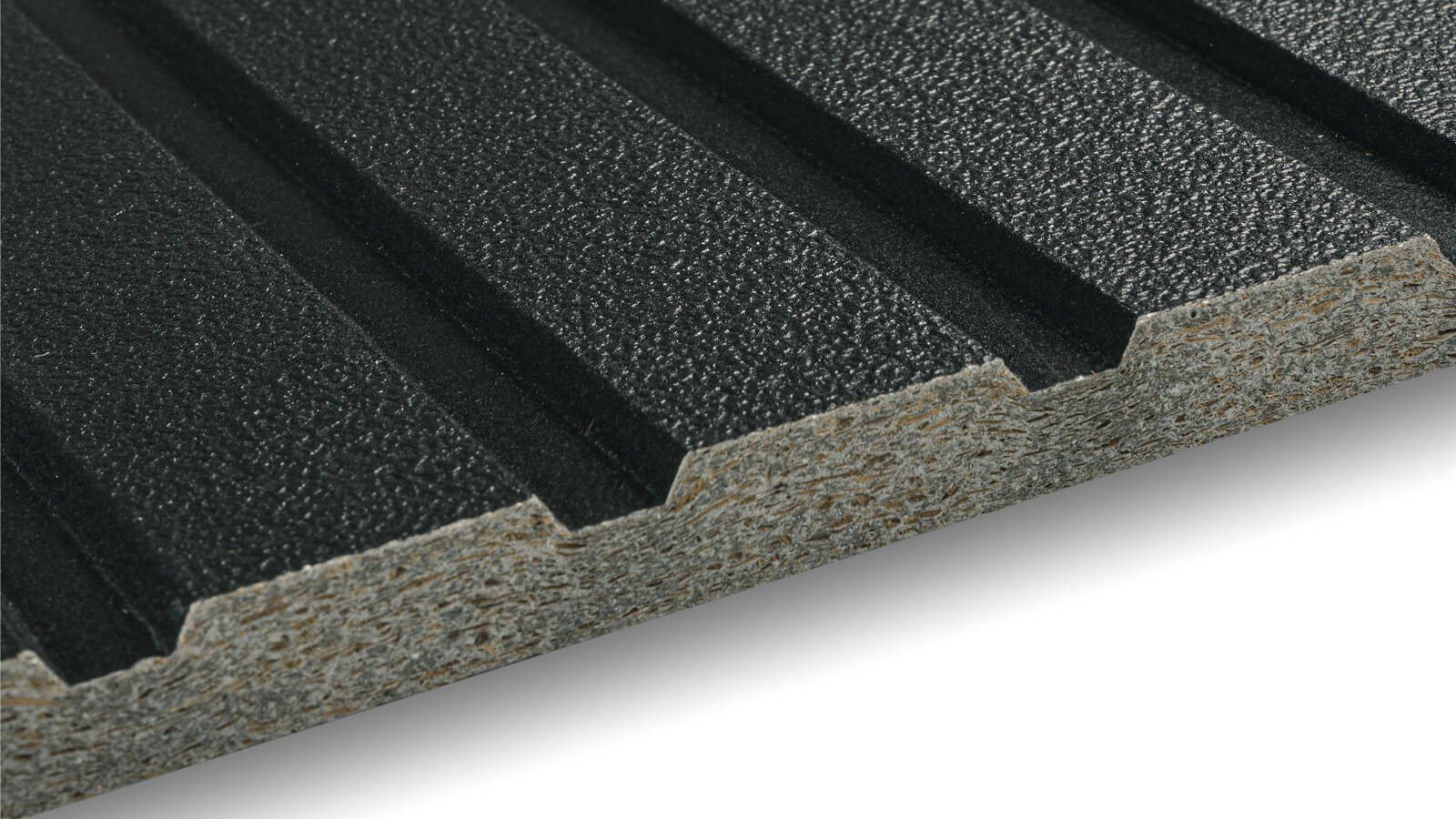

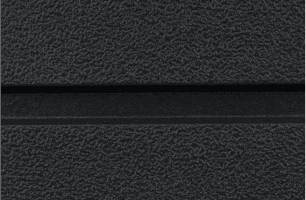

Territory™ Ridge Black
An elegant and sophisticated black cladding. With deep corrugations 35mm apart, it has depth and intensity giving it a bold modern aesthetic.

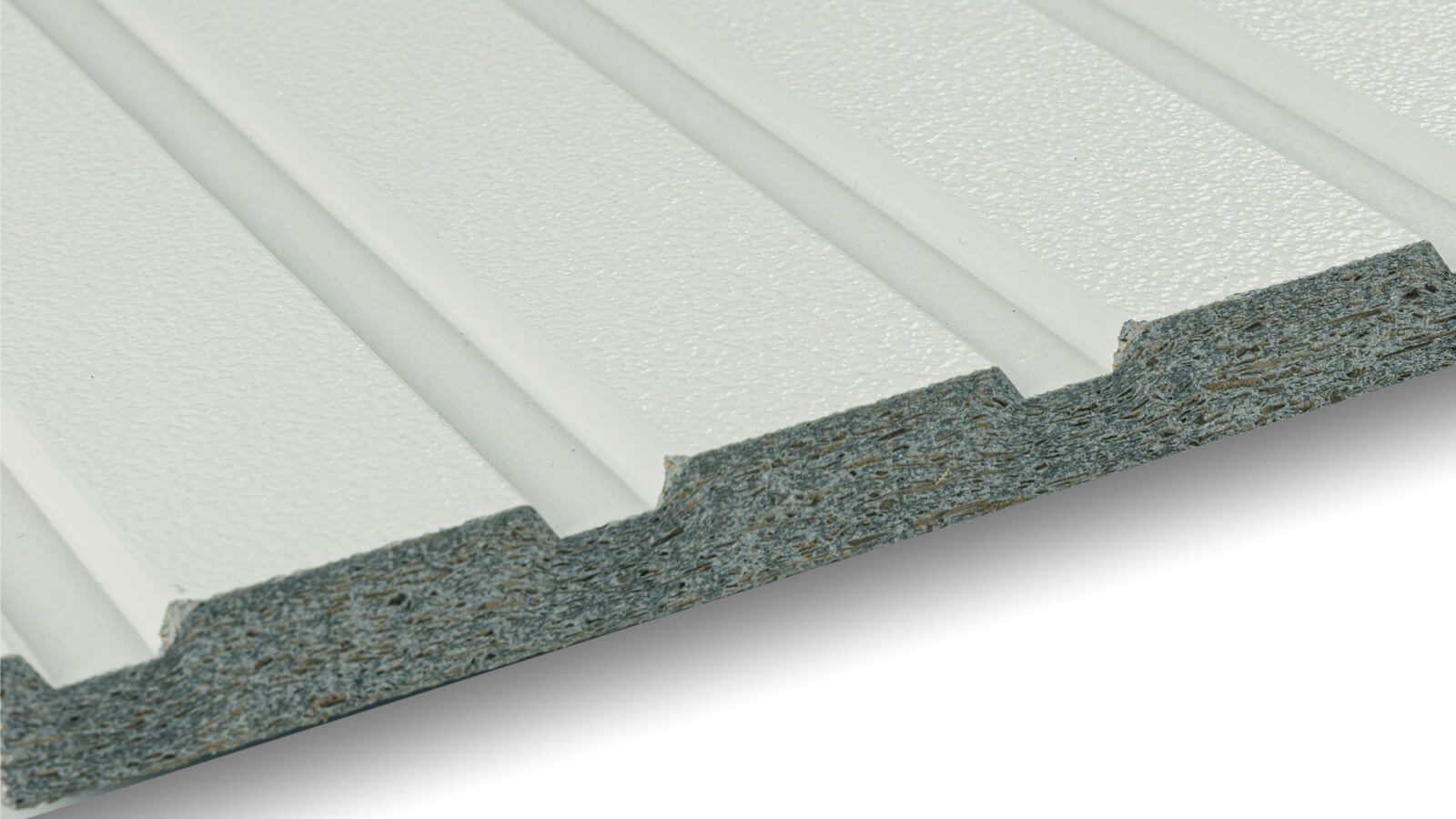

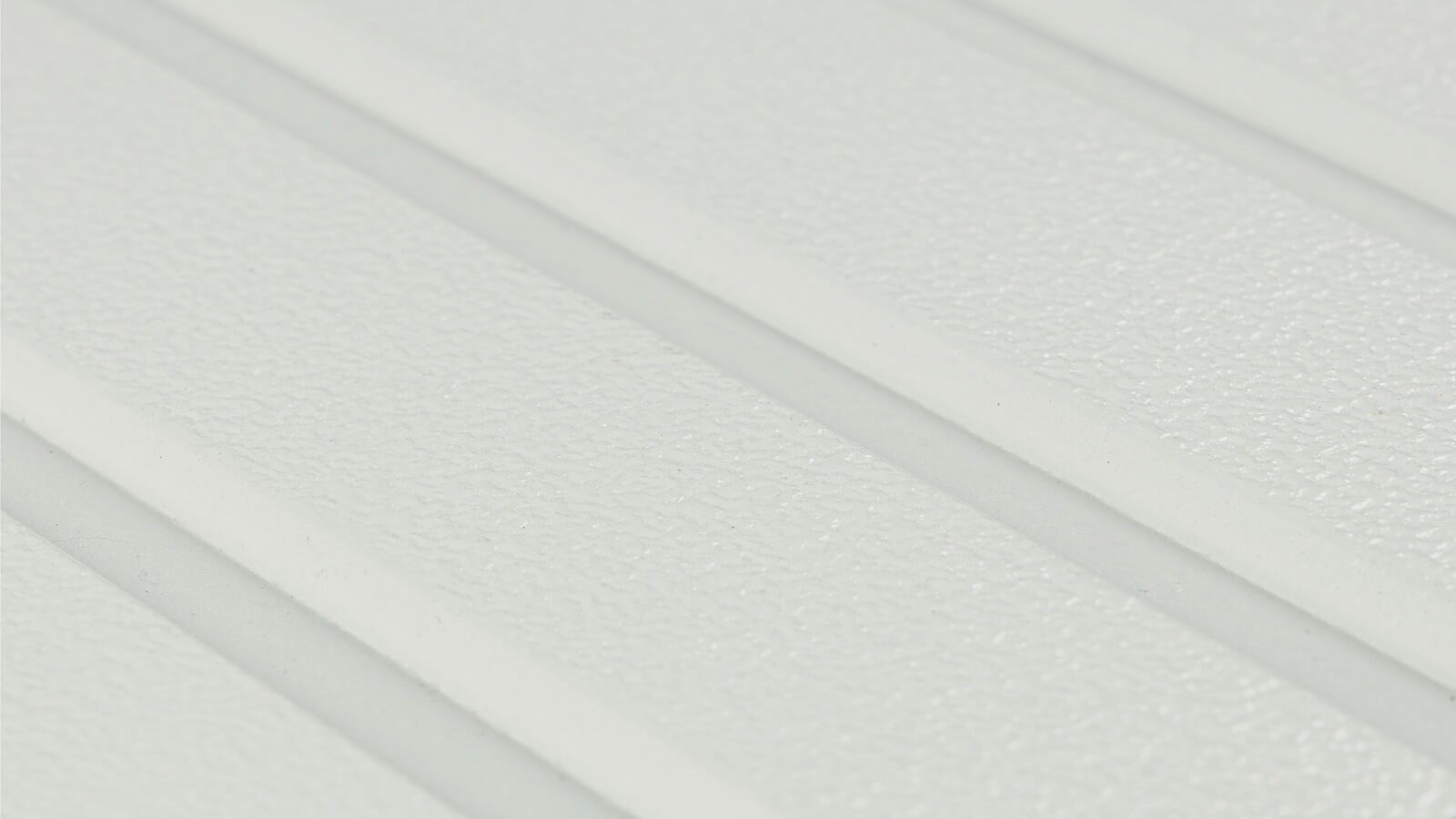

Territory™ Ridge White
A crisp clean white cladding. With deep corrugations 35mm apart, it reflects light and creates sharp shadows giving a dynamic effect.

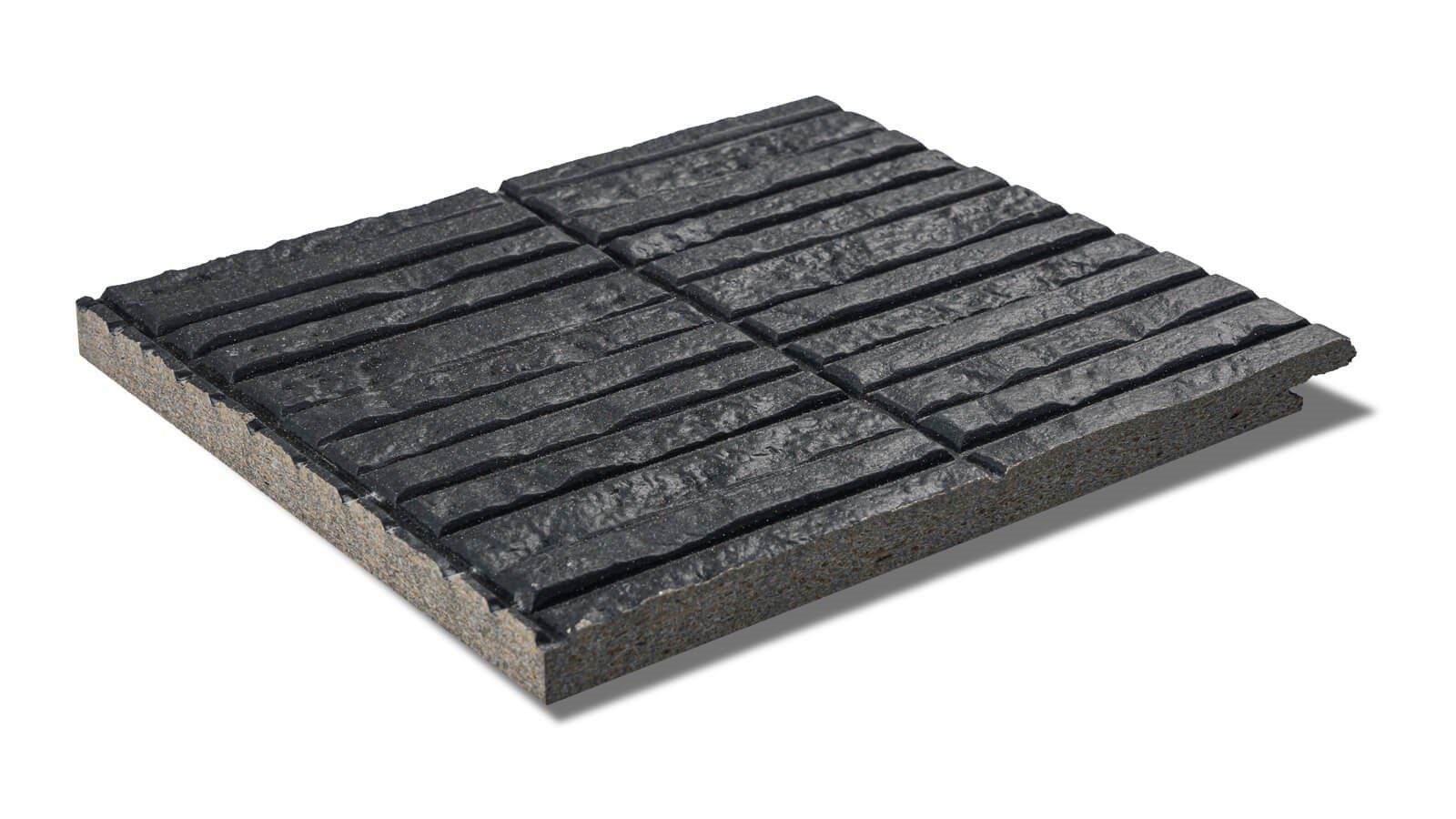

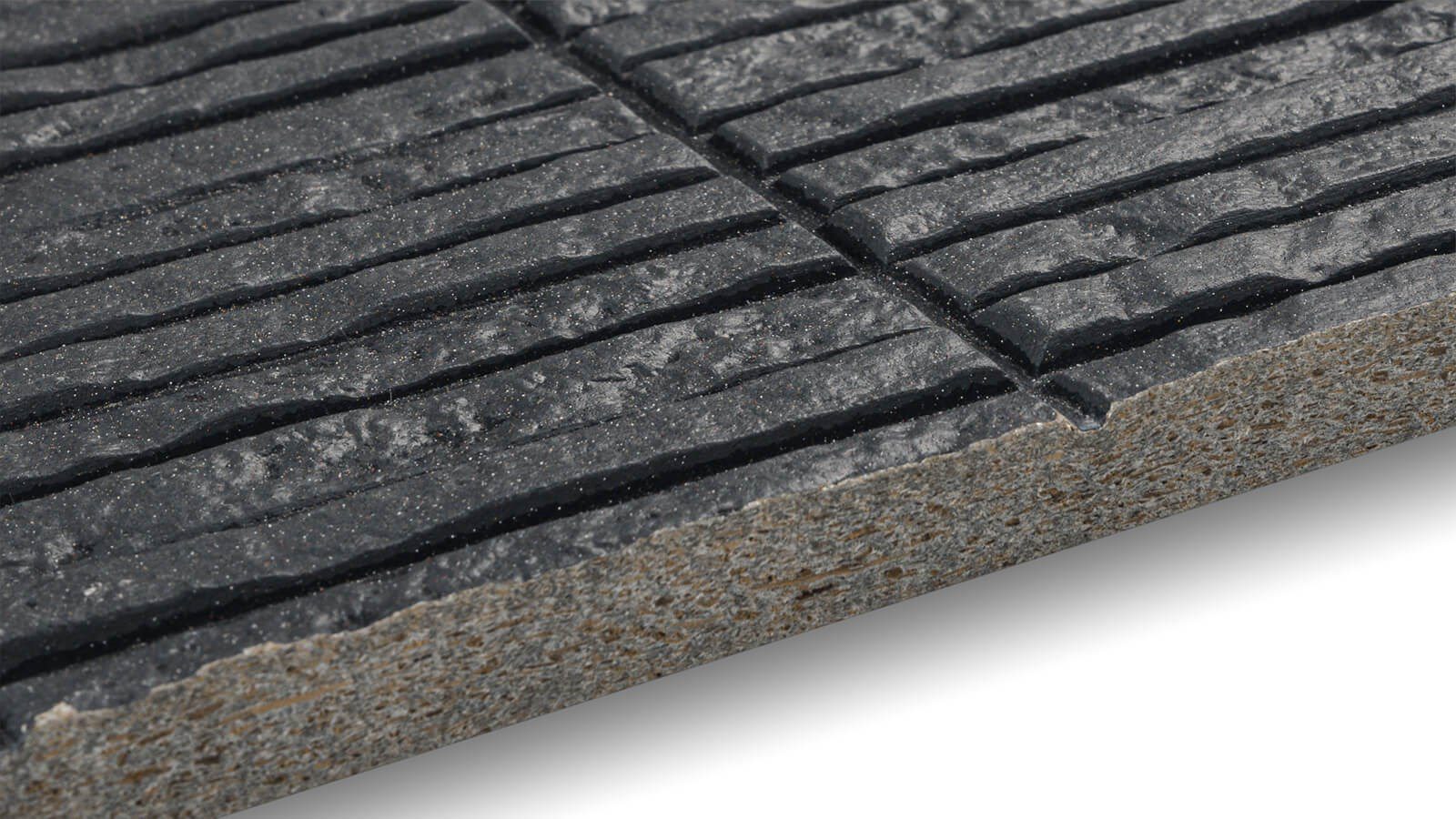

Territory™ Canyon Carnarvon
Directional light reveals light and dark slate stone colours across the ridges and texture undulations.

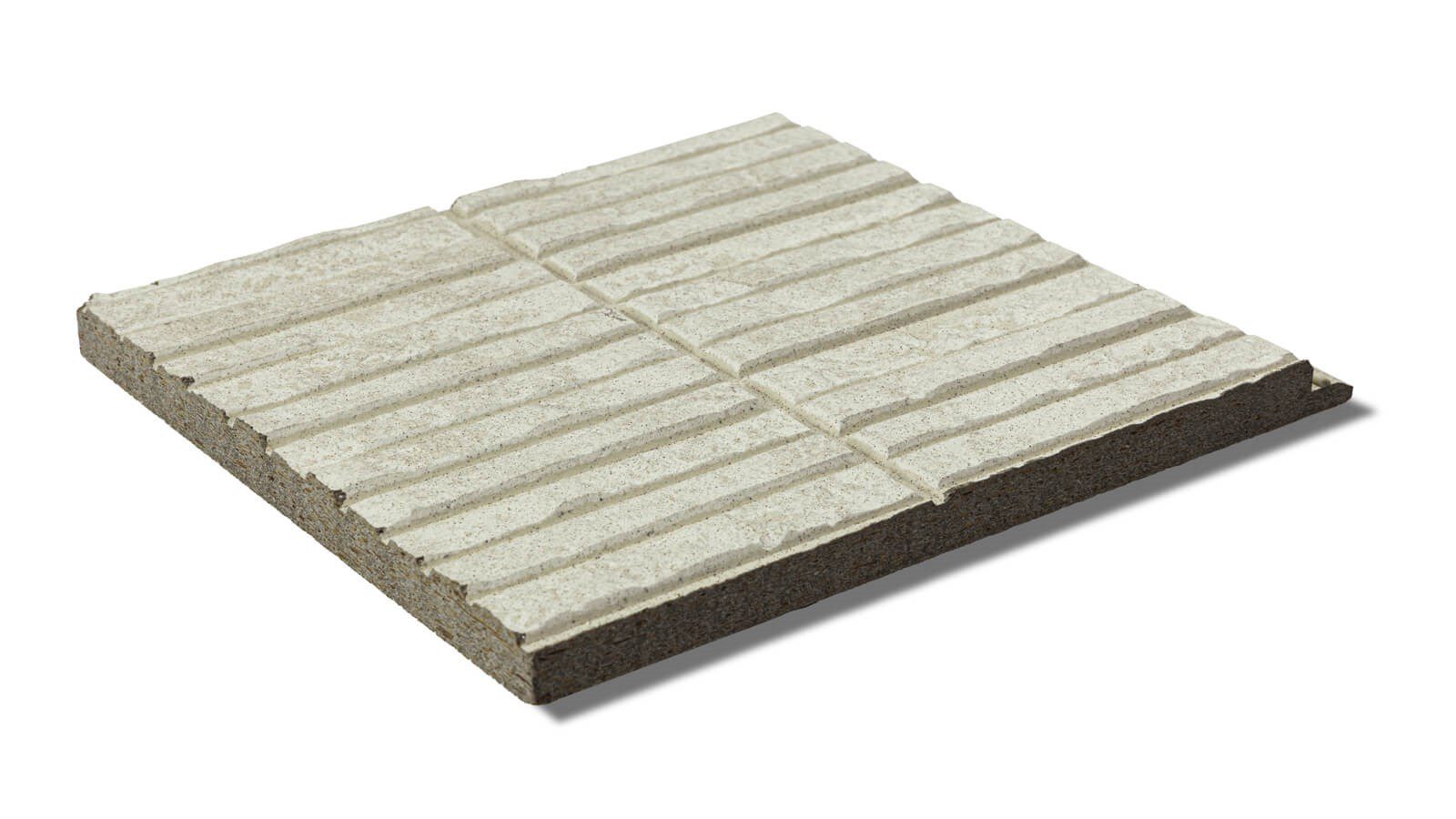

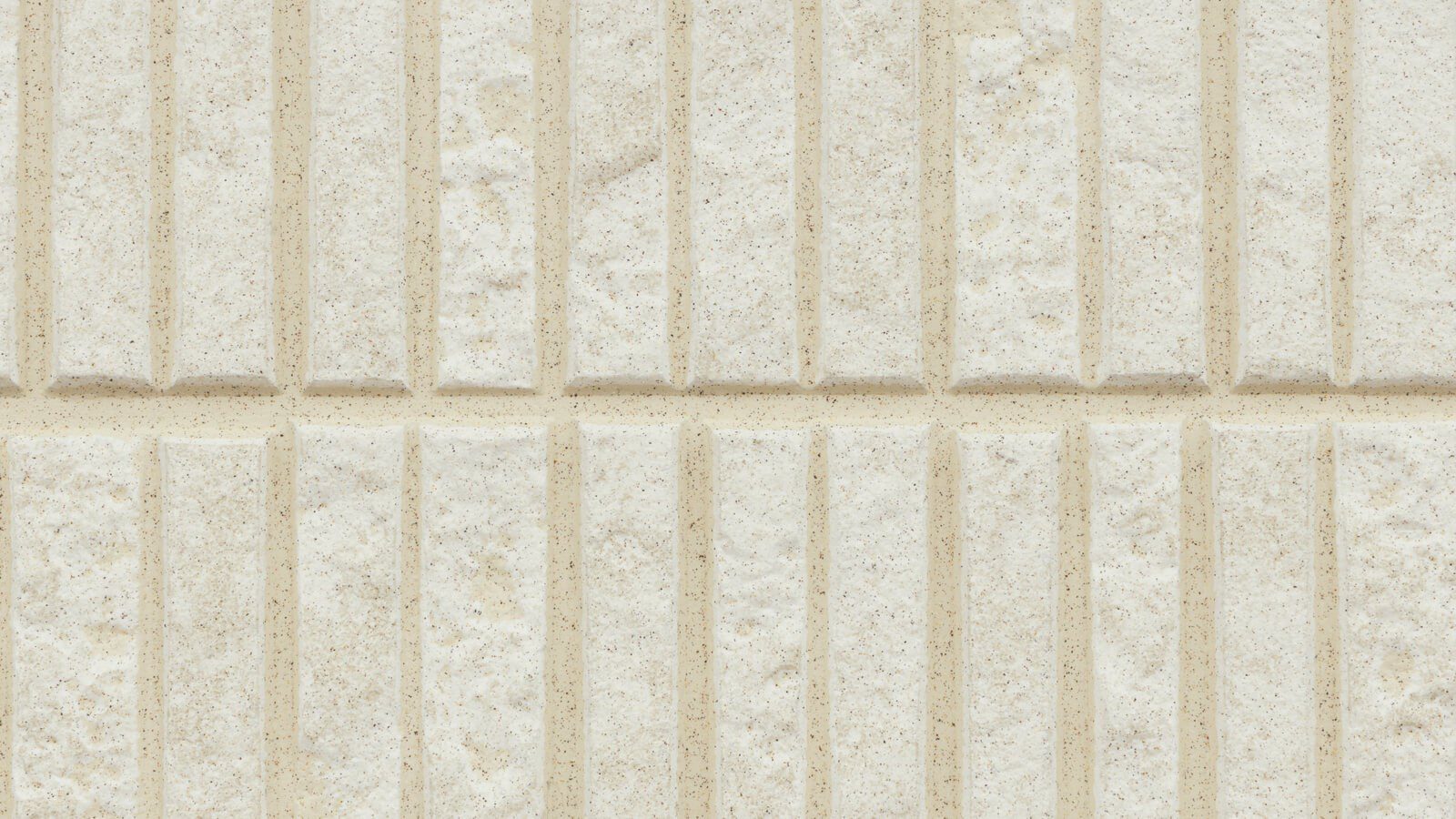

Territory™ Canyon Kings
A limestone white colour with sandy undertones between the mosaic tile shapes.

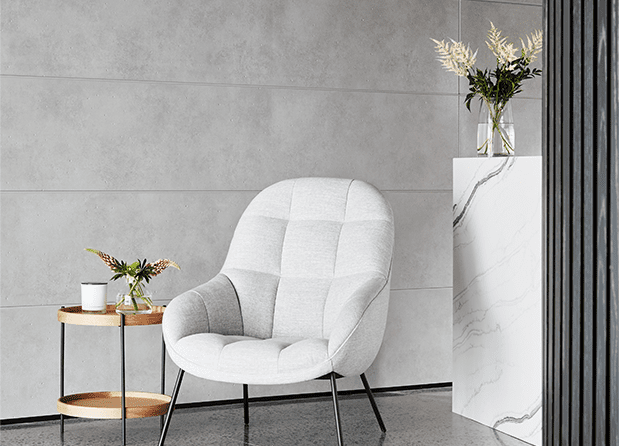

Territory™ Quarry Concrete
Warm grey tonal variation dominated by the sharp, straight lines of the panel joints which are 455mm apart.

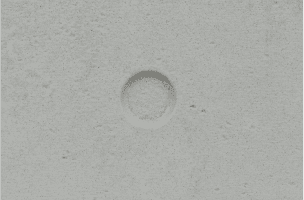

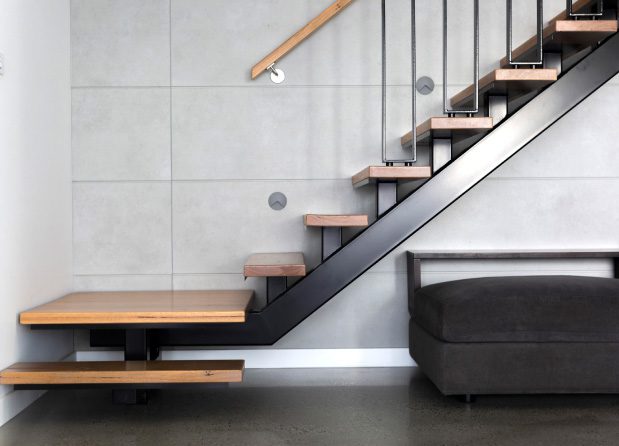

Territory™ Quarry Urban Grey
Warm grey tonal variation featuring divots that enhance the look of formed concrete panels. Precisely lined divots give the impression of a high-quality build.
Territory™ Savanna Cloud
Cool like a cloudy day. The cloud colour is a light cool matt grey.
Territory™ Savanna Mist
A grey colour plucked from the Australian landscape. It has a little warmth and would be an easy fit for contemporary designs.
Territory™ Savanna Shade
A mid grey with enough warmth to give it an earthy feel.
Territory™ Savanna Shadow
A sophisticated dark grey (almost black). It achieves its matt appearance with the help of a light render texture.


Territory™ Woodlands Teak


Territory™ Woodlands Smoked


Territory™ Woodlands Limed


Territory™ Woodlands Ebony


Territory™ Woodlands Birch


Territory™ Woodlands Cedar


Territory™ Woodlands Grey Gum


Territory™ Woodlands Jarrah Slats


Territory™ Woodlands Kwilla Slats


Territory™ Woodlands Oaky Slats

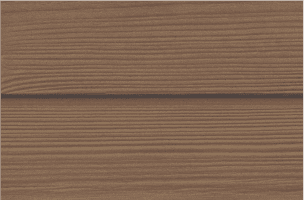

Territory™ Woodlands Teak
Beautiful, earthy tan colour with smooth grain texture and 150mm spaces between joint lines.
Territory™ Woodlands Smoked
Sophisticated dark green-grey shade of eucalypt with charred elements. 150mm spacing between joint lines.

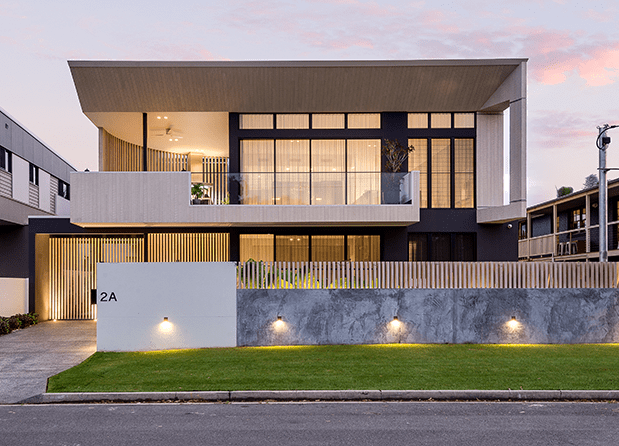

Territory™ Woodlands Limed
Contemporary lime washed timber with a gorgeous rough sawn texture. 110mm spacing between joint lines.

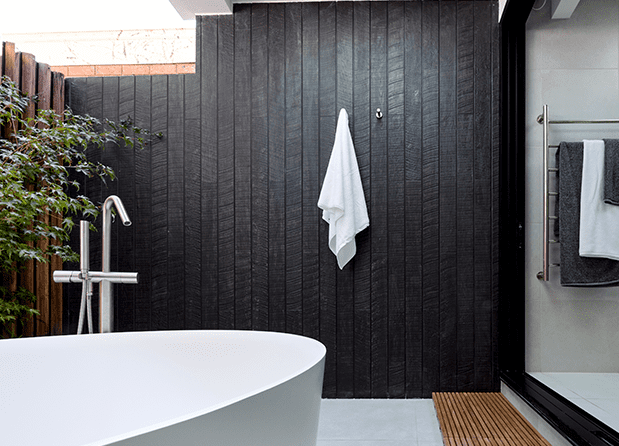

Territory™ Woodlands Ebony
Luxurious deep black with undertones of brown and olive with a rough sawn texture. 110mm spacing between joint lines.
Territory™ Woodlands Birch
Scandinavian Design inspired light brown and cream colours with a rough sawn texture. 110mm spacing between joint lines.
Territory™ Woodlands Cedar
Authentic grounded cedar with warm red hues and a straight wood grain texture. 150mm spacing between joint lines.
Territory™ Woodlands Grey Gum
Australian eucalypt silver and grey forest colours and a flowing grain. 150mm spacing between joint lines.
Territory™ Woodlands Jarrah Slats
A hint of sunset and warmth in the rich dark brown colour with smooth timber texture. Tight 45mm spacing between joint lines.
Territory™ Woodlands Kwilla Slats
Aged timber with an earthy green colour with a smooth timber grain. Tight 45mm spacing between joint lines.
Territory™ Woodlands Oaky Slats
Honey colour oak and golden hues with a smooth wood grain. Tight 45mm spacing between joint lines.
Disclaimer: Product images and samples may vary from actual product regarding colour and surface finish due to the manufacturing process and raw materials used.
Technical Information
Territory Panel Information
Cemintel Territory cladding is a 16mm thick cement-bonded fibrous wood particle panel that’s pressed with surface textures and finished with a high-quality paint and UV coating. The panels are 3030mm in length with an effective cover width of 455mm and connect seamlessly into each other via a tongue and groove profile.
The Territory cladding panels are supported by a proprietary concealed fixing system that enables the panels to be installed either horizontally or vertically, externally or internally, on both residential and commercial buildings.

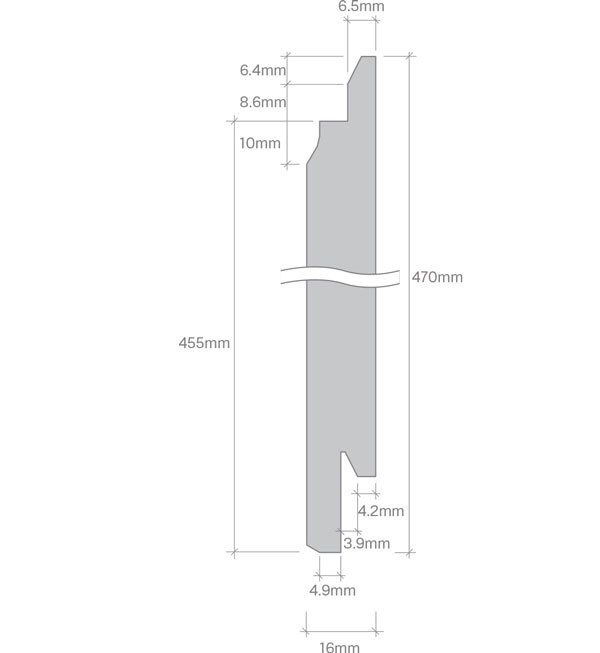

Territory Panel Specifications
Property | Specification | Manufacturing Tolerance |
---|---|---|
Panel Width | 470mm (overall width) 455mm (effective coverage) | +/- 1mm |
Panel Length | 3030mm | +/- 1mm |
Panel Thickness | 16mm | +/- 1.2mm |
Panel Weight (EMC) | 24.6kg to 30kg per panel. Weight varies depending on finish. (Note: 2 panels per pack) |
Territory Product Specifications
Product Code | Description | Width (mm) | Length (mm) | Thickness (mm) | Surface Texture | Finish | Groove Spacing (mm) | Effective Cover Per Unit (m2) | Effective Width (mm) | Mass (kg/m2) | Weigth Per Unit | Product Warranty (Years) | BAL |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
134702 | Territory Quarry Concrete | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
133977 | Territory Quarry Urban Grey | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
163108 | Territory Woodlands Ebony | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
163175 | Territory Woodlands Limed | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
133976 | Territory Woodlands Smoked | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
133975 | Territroy Woodlands Teak | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472377 | Territory Woodlands Cedar | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472376 | Territory Woodlands Grey Gum | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472366 | Territory Woodlands Birch | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472362 | Territory Woodlands Oaky Slats | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472361 | Territory Woodlands Kwilla Slats | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472360 | Territory Woodlands Jarrah Slats | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472365 | Territory Canyon Carnarvon | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472363 | Territory Canyon Kings | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
133935 | Territory Savanna Cloud | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
133937 | Territory Savanna Mist | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
133938 | Territory Savanna Shade | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
477863 | Territory Savanna Shadow | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472373 | Territory Ridge Black | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
472374 | Territory Ridge White | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
