4 colours show the natural raw beauty of fibre cement
Barestone® Cladding Range
Architects appreciate building materials with natural textures and patterns. They recognize the concrete-like beauty of fibre cement. An attractive quality usually hidden. As it’s typically a site painted material.
Thankfully, Cemintel’s innovative prefinished cladding solution Barestone exposes the natural mottled concrete finish of fibre cement. This gives designers a compelling lightweight option for a range of projects. From large architect-designed buildings to small bespoke home renovation additions.
It’s not always desirable that regular fibre cement cladding in acrylic paint often juxtaposes the textures present in natural settings. Due to its texture and tonal variation, Barestone cladding is better able to blend into its environment. Despite their bold, minimalist shapes, contemporary buildings which use Cemintel Barestone cladding are able to sit comfortably in natural settings.
Conveniently, the cladding can be used in bushfire zones up to Bushfire Attack Level BAL 40 for external walls.
Manufactured in Australia.
Product in Application
-
Apartment Facades
Commercial
-
Ceilings
Residential
-
Commercial Facades
Commercial
-
Eaves
Residential
-

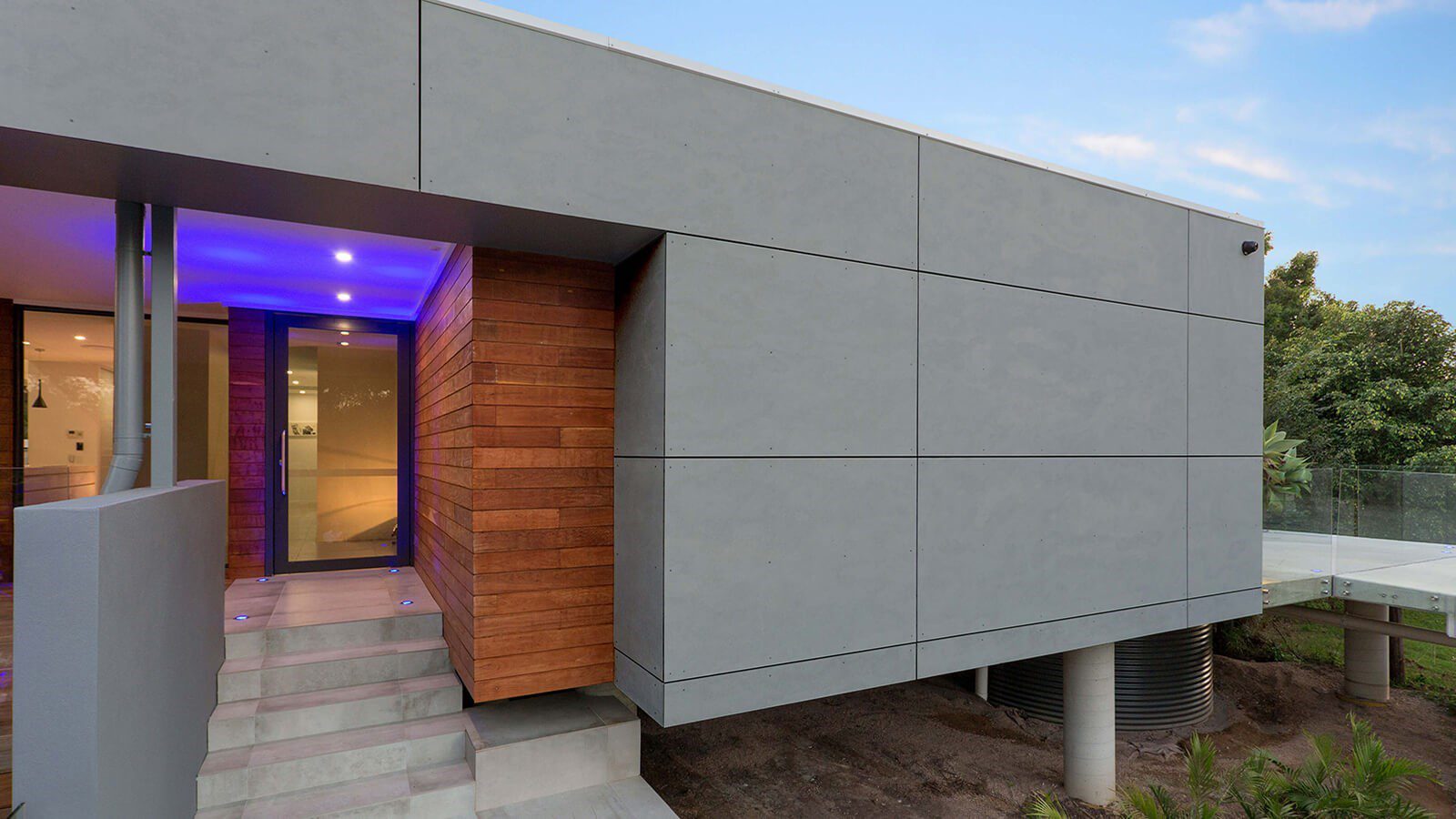

External Cladding
Residential
-

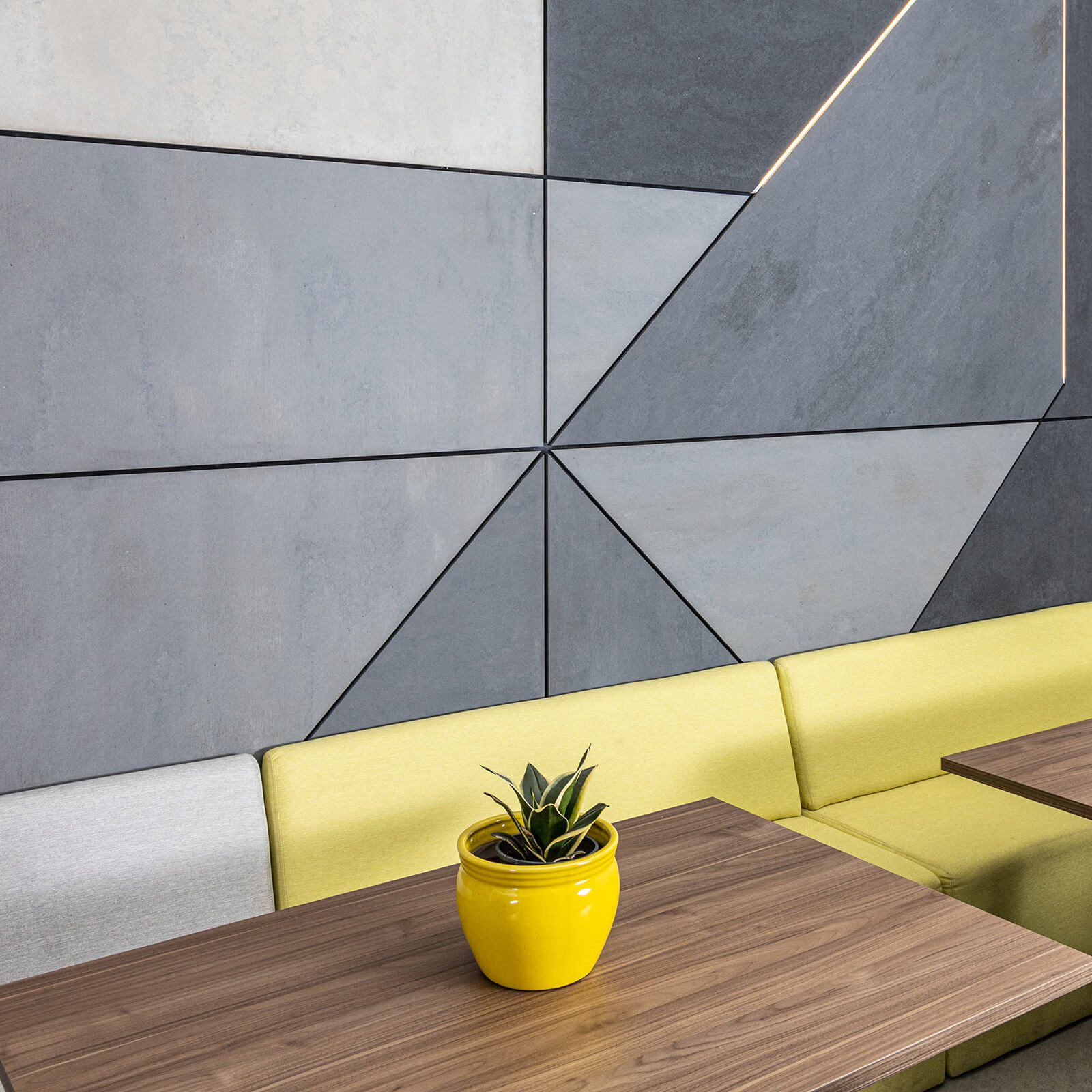

Feature Walls
Residential
-
Internal Linings
Residential
-
Soffits
Commercial
Barestone® Range
Barestone® Original
Barestone® Ash
Barestone® Lunar
Barestone® Graphite
Barestone® Original
The original natural concrete look. It enhances design with its smooth, light concrete appearance. *There are interior versions of each Barestone product. They have a different coating to combat household items such as oils, wine, and food.

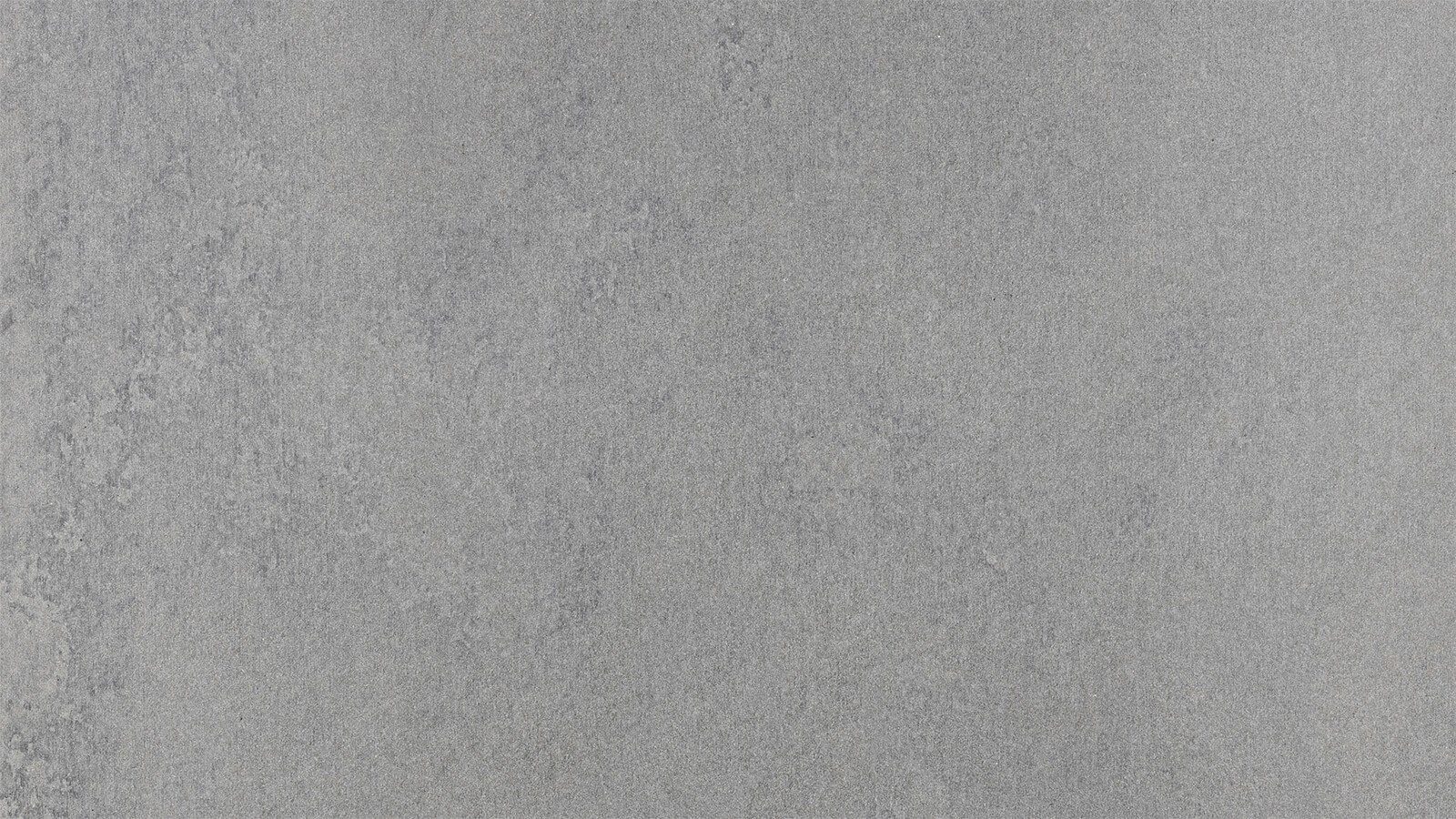

Barestone® Ash
The natural colour of fine minerals and metals that remain after a fire. The light tone and texture is soft, calm and tranquil. *There are interior versions of each Barestone product. They have a different coating to combat household items such as oils, wine, and food.
Barestone® Lunar
A saturated cool, charcoal grey with dark undertones. It’s the perfect colour to add drama and sophistication. *There are interior versions of each Barestone product. They have a different coating to combat household items such as oils, wine, and food.
Barestone® Graphite
A dark, warm, deep grey with true black undertones that add drama and elegance. *There are interior versions of each Barestone product. They have a different coating to combat household items such as oils, wine, and food.
Disclaimer: Product images and samples may vary from actual product regarding colour and surface finish due to the manufacturing process and raw materials used.
Technical Information
Barestone Panel Information
Cemintel Barestone are prefinished, square edged, compressed fibre cement (CFC) panels that come trimmed and sealed in a standard 1200 x 3000 x 9mm size. Consisting primarily of Portland Cement, cellulose fibre, air and water, panels are compressed to produce a dense 9mm panel that offers superior performance in terms of strength and durability.
Barestone External panels are an excellent choice for commercial applications subject to higher wind loads. The panels incorporate Cemintel’s unique Ceminseal® water block technology (factory sealed on all sides) for added weather resistance and durability. The Barestone colours also have a secondary coating to minimise colour fade.
Barestone Internal panels have an effective stain resistant coating applied to the panel face to combat standard household items such as oils, wine and food, providing superior performance in terms of strength, density and durability.
Barestone Panel Specifications
| Property | Specification | Manufacturing Tolerance | Relevant Standard |
|---|---|---|---|
| Panel Width | 1200mm | + 0.0mm / - 2.0mm | AS/NZS 2908.2 |
| Panel Length | 2400 and 3000mm | + 0.0mm / - 2.0mm | AS/NZS 2908.2 |
| Panel Thickness | 9mm | + 0.9mm / - 0.0mm | AS/NZS 2908.2 |
| Panel Weight (EMC) | 17.8kg/m2 | AS/NZS 2908.2 |
Barestone Spectral Reflectivity Values
| Product | Solar Reflectance % | Solar Absorbtance % | Basix Colour | Relevant Standard |
|---|---|---|---|---|
| Barestone Original | 39.8 | 60.2 (+/-1.2) | Medium | ASTM E903-12 |
| Barestone Ash | 23.0 | 76.1 (+/- 0.7) | Dark | ASTM E903-12 |
| Barestone Lunar | 14.3 | 85.7 (+/-0.4) | Dark | ASTM E903-12 |
| Barestone Graphite | 8.7 | 91.3 (+/-0.3) | Dark | ASTM E903-12 |
Barestone Product Specifications
| Product Code | Description | Width (mm) | Length (mm) | Thickness (mm) | Surface Texture | Finish | Groove Spacing (mm) | Effective Cover Per Unit (m2) | Effective Width (mm) | Mass (kg/m2) | Weigth Per Unit | Product Warranty (Years) | BAL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 99487 | Barestone Original | 1200 | 2400 | 9 | Smooth | Prefinished | n/a | 2.88 | 1200 | 17.8 | 51.26 | 10 | BAL-40 |
| 99486 | Barestone Original | 1200 | 3000 | 9 | Smooth | Prefinished | n/a | 3.6 | 1200 | 17.8 | 64.08 | 10 | BAL-40 |
| 135243 | Barestone Original | 1200 | 2400 | 9 | Smooth | Prefinished | n/a | 2.88 | 1200 | 17.8 | 51.26 | 10 | BAL-40 |
| 140990 | Barestone Original | 1200 | 3000 | 9 | Smooth | Prefinished | n/a | 3.6 | 1200 | 17.8 | 64.08 | 10 | BAL-40 |
| 193224 | Barestone Ash | 1200 | 2400 | 9 | Smooth | Prefinished | n/a | 2.88 | 1200 | 17.8 | 51.26 | 10 | BAL-40 |
| 193226 | Barestone Ash | 1200 | 3000 | 9 | Smooth | Prefinished | n/a | 3.6 | 1200 | 17.8 | 64.08 | 10 | BAL-40 |
| 457045 | Barestone Ash | 1200 | 3000 | 9 | Smooth | Prefinished | n/a | 3.6 | 1200 | 17.8 | 64.08 | 10 | BAL-40 |
| 193220 | Barestone Lunar | 1200 | 2400 | 9 | Smooth | Prefinished | n/a | 2.88 | 1200 | 17.8 | 51.26 | 10 | BAL-40 |
| 193222 | Barestone Lunar | 1200 | 3000 | 9 | Smooth | Prefinished | n/a | 3.6 | 1200 | 17.8 | 64.08 | 10 | BAL-40 |
| 457043 | Barestone Lunar | 1200 | 3000 | 9 | Smooth | Prefinished | n/a | 3.6 | 1200 | 17.8 | 64.08 | 10 | BAL-40 |
| 195273 | Barestone Graphite | 1200 | 2400 | 9 | Smooth | Prefinished | n/a | 2.88 | 1200 | 17.8 | 51.26 | 10 | BAL-40 |
| 194885 | Barestone Graphite | 1200 | 3000 | 9 | Smooth | Prefinished | n/a | 3.6 | 1200 | 17.8 | 64.08 | 10 | BAL-40 |
| 457046 | Barestone Graphite | 1200 | 3000 | 9 | Smooth | Prefinished | n/a | 3.6 | 1200 | 17.8 | 64.08 | 10 | BAL-40 |
