Cemintel® Surround™ gives designers a commercial cladding range with unparalleled flexibility. They can choose from five neutral colours, each in five textures, as well as sixteen bold secondary colours.

It gives the construction industry’s designers and builders creative solutions. Ones which result in compelling exterior cladding and façade designs to fit commercial buildings. Whether they want to fit in or stand out from their environments.

Cemintel Surround is also a stunning internal walling system. The variety of textures and finishes can be nicely enhanced by controlled lighting making them an interesting interior design choice in foyers, reception areas and boardrooms.

Cemintel Surround demonstrates how the Global construction industry is looking at new ways to design buildings. To make them lightweight and less resource intensive. As well as durable and low maintenance.

Surround products are made with cement, wood pulp, reinforcement fibres, air and water. The panels offer superior performance in terms of strength, density and durability. This makes them an excellent choice for commercial applications which are subject to high wind loads.

Surround offers a proven Pressure Equalised Ventilated Cavity Commercial Cladding System that resists weather and manages moisture.

Surround uses express joints and a top hat system. A familiar way to install commercial cladding. It aids the creation of compelling geometric patterns with playful colour variations.

The prefinished panels are colour bodied. Also known as colour-through. This removes construction complexity as well as the maintenance liability of a painted surface.

Textures in the neutral “ISH” range add another dimension to building façades as light sources animate their surfaces.
The prefinished coating is highly effective in repelling water. Plus, an additional UV coating helps the panels better withstand weathering over time.
Suitable where noncombustible building materials are required. In accordance with Vol.1 C2010(6)(d) and Vol. 2 H3D2 (1)(d) of the NCC.
Environmentally, the European manufacturing process of air curing means less CO2 emissions. Panels can be recycled for soil conditioning. They don't pose a health risk for landfill disposal.

Application

  • Apartment Facades

    Commercial

  • Ceilings

    Commercial

  • Commercial Facades

    Commercial

  • Feature Walls

    Commercial

  • Soffits

    Commercial

  • External Cladding

    Residential

  • Internal Linings

    Residential

  • Eaves

    Residential

The Collection

Blackish

Secondary Palette

Blueish

Greenish

Greyish

Whiteish

A close-up image of a dark grey, smooth leather texture with subtle variations in shading, showcasing its fine grain and matte finish. The surface appears uniform, without any distinct patterns or markings.

Surround® Blackish Base

A textured, close-up view of a dark gray surface with an intricate, irregular pattern resembling crumpled fabric or rough waves. The surface has a slightly shiny, embossed appearance, creating variations in light and shadow.

Surround® Blackish String

A close-up image of a dark, textured surface that appears to be black leather. The surface has subtle wrinkles and fine lines visible, creating a natural, slightly worn look. The texture is consistent across the image, giving a sense of material durability.

Surround® Blackish Leather

A close-up of a surface with a dark gray, textured appearance, resembling asphalt or rough fabric. The texture includes various fine, grainy details throughout.

Surround® Blackish Metal

A textured, dark grey surface. The texture appears slightly rough, giving it a subtle depth and variation in shading.

Surround® Blackish Marl

Surround® Blackish Base

A flat, smooth texture with an opaque coating.

Order a Sample

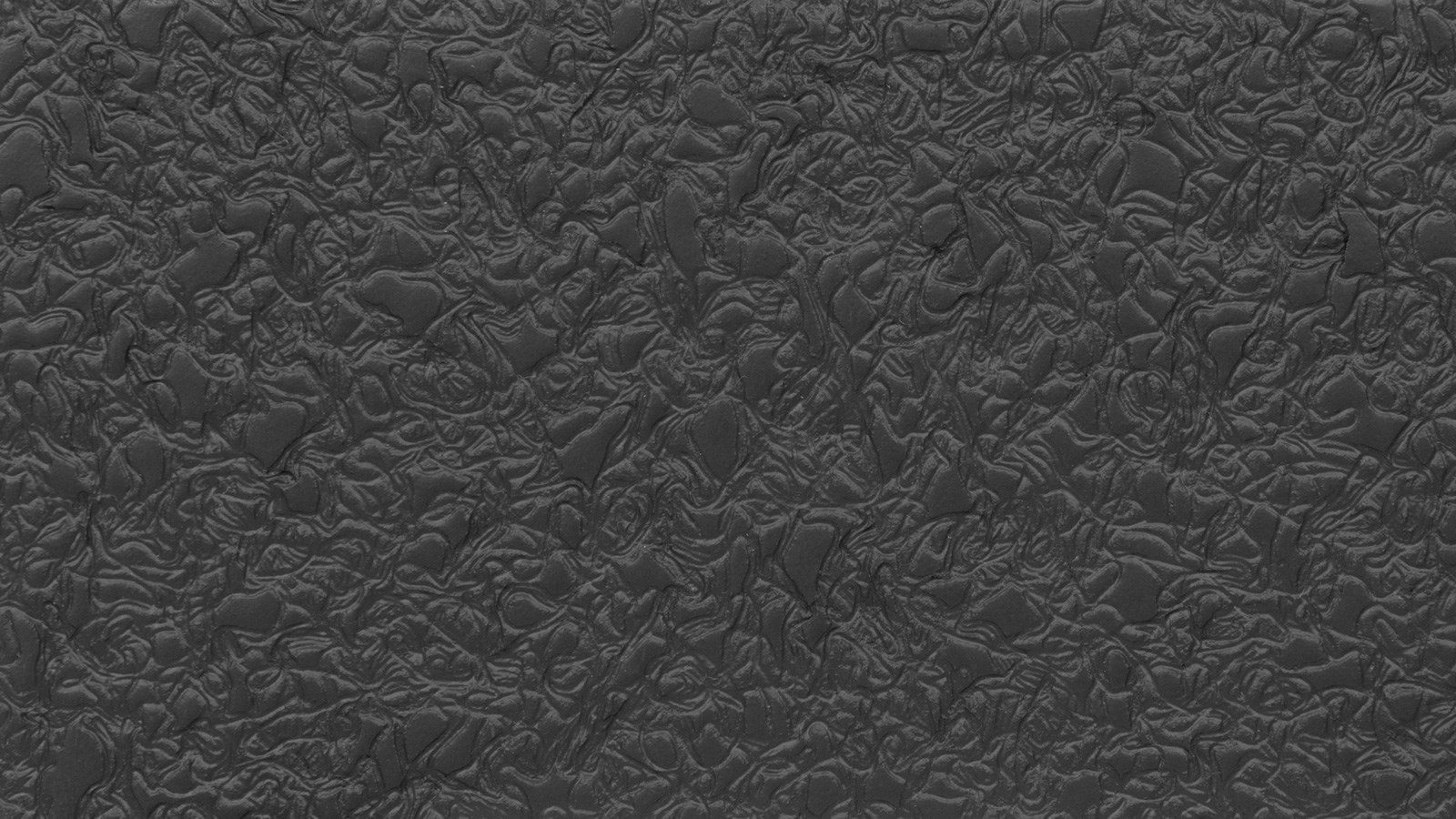

Surround® Blackish String

An intricate texture of loose fine string embossed into the surface with an opaque coating.

Order a Sample

Surround® Blackish Leather

A subtle, soft leather-like texture with an opaque coating.

Order a Sample

Surround® Blackish Metal

A smooth surface with a subtle metallic sheen when light reflects off the surface.

Order a Sample

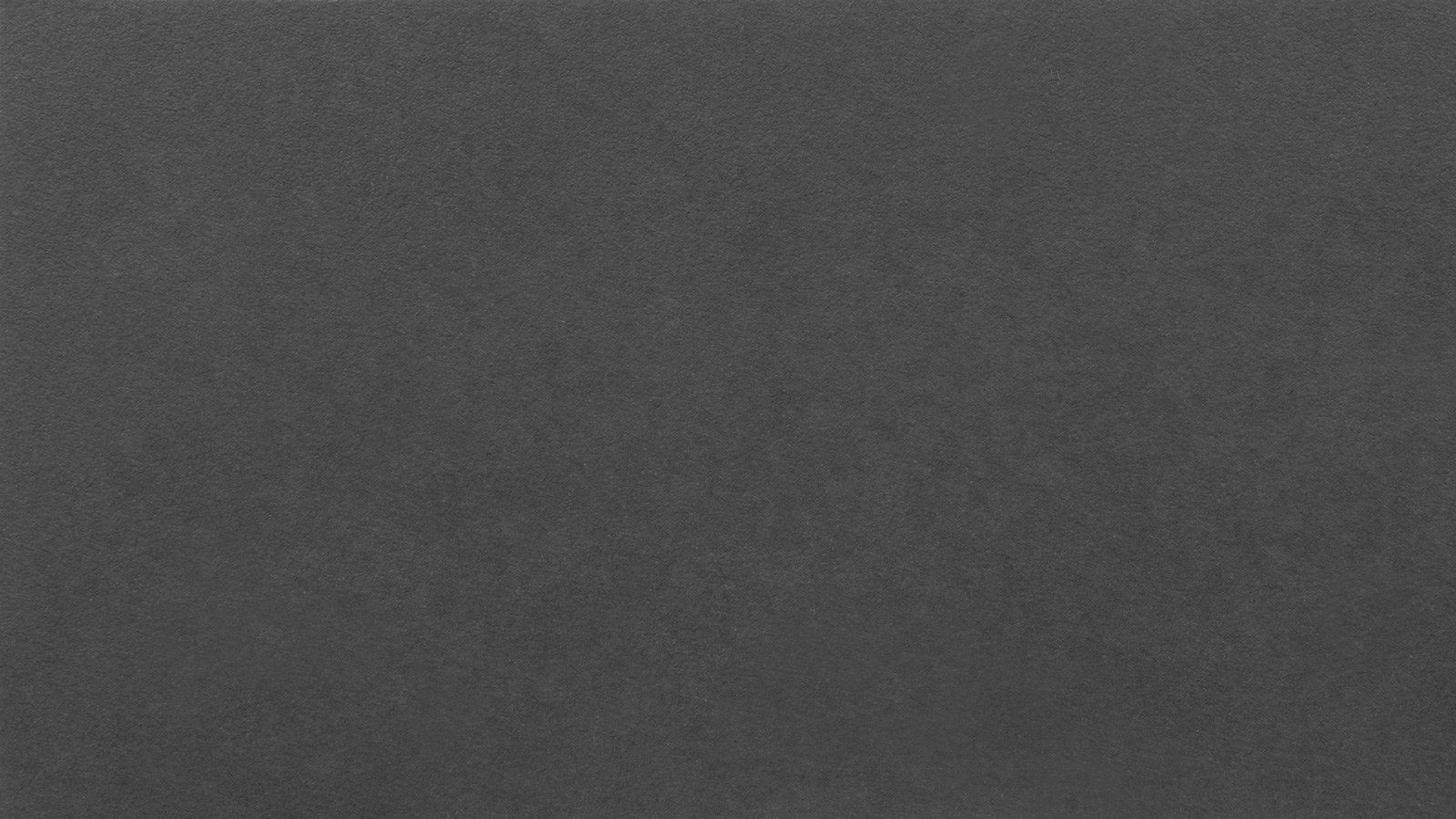

Surround® Blackish Marl

A smooth texture with a transparent coating that reveals a fine grain sediment (marl) texture.

Order a Sample
A close-up image of a flat, smooth, and uniform green surface.

Surround® Greenback

A solid, plain dark green background. The texture appears smooth and uniform, with no visible patterns or variations in color or shade.

Surround® Garb

A close-up image of a surface with a solid, dark olive green color and a slightly textured appearance. There are no discernible patterns or markings.

Surround® Woodlot

A solid mint green background with a smooth texture.

Surround® Aero

A solid yellow background with no visible patterns or objects.

Surround® Maya

A textured, solid pink background fills the entire frame. The pink hue is soft and pastel-like, giving the image a gentle and calming appearance. The texture adds a subtle, tactile quality.

Surround® Mete

A solid beige background with a smooth texture. There are no distinct features or patterns visible.

Surround® Husk

A close-up view of a plain, smooth surface with a light gray color. The texture appears even and unblemished.

Surround® Gauze

A solid, deep teal background. The surface appears smooth and uniform without any distinct patterns or textures.

Surround® Hover

A close-up of a smooth, dark grey surface with a consistent texture. The lighting is even, highlighting the uniformity of the surface with slight variations in shading.

Surround® Truss Grey

A plain, light grey background with no visible objects, patterns, or features.

Surround® Whiteout

A close-up view of a dark textured surface, possibly black or very dark gray. The texture appears uniform and slightly rough, resembling materials such as asphalt, concrete, or a chalkboard.

Surround® Blackout

A uniformly textured solid orange background with no discernible patterns or objects.

Surround® Quinta

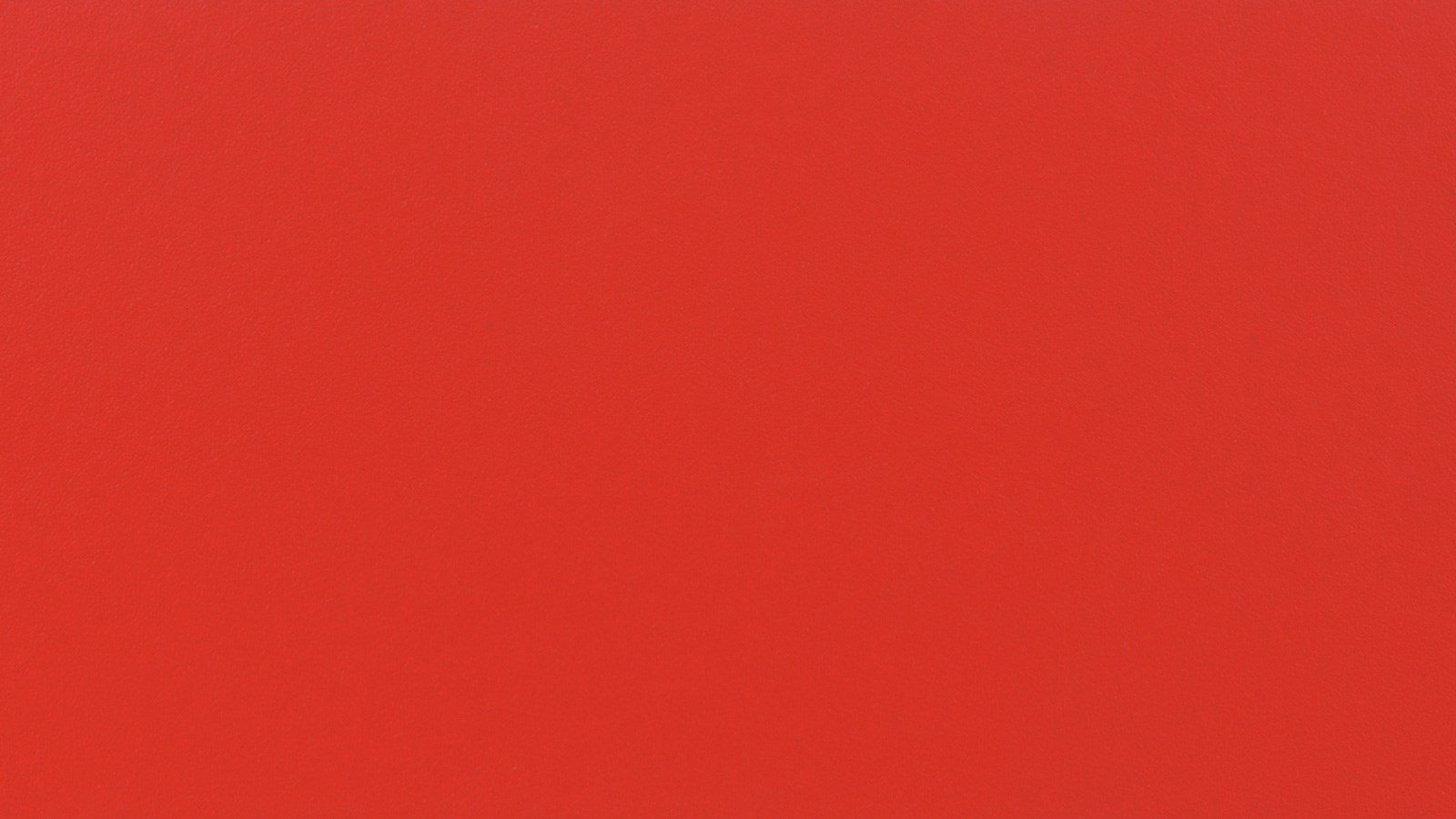

A smooth, solid red background with no visible objects or patterns.

Surround® Volta

A solid red background with a subtle textured surface.

Surround® Mainland

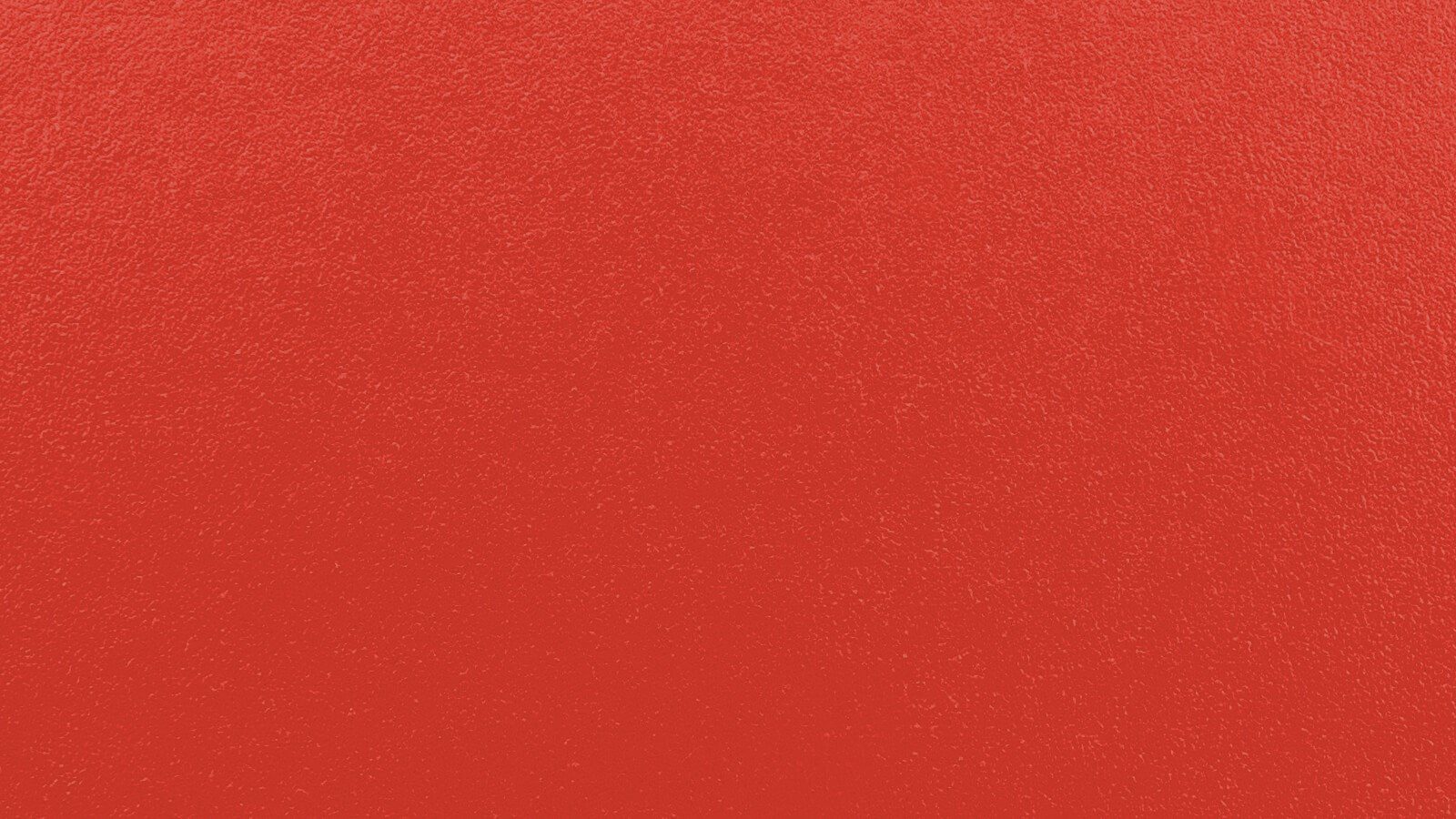

A vibrant red textured surface fills the frame, with a consistent, slight granular appearance. The texture contributes to an even distribution of the bright red hue across the entire image.

Surround® Strike

Surround® Greenback

Greenback is a mid green.

Order a Sample

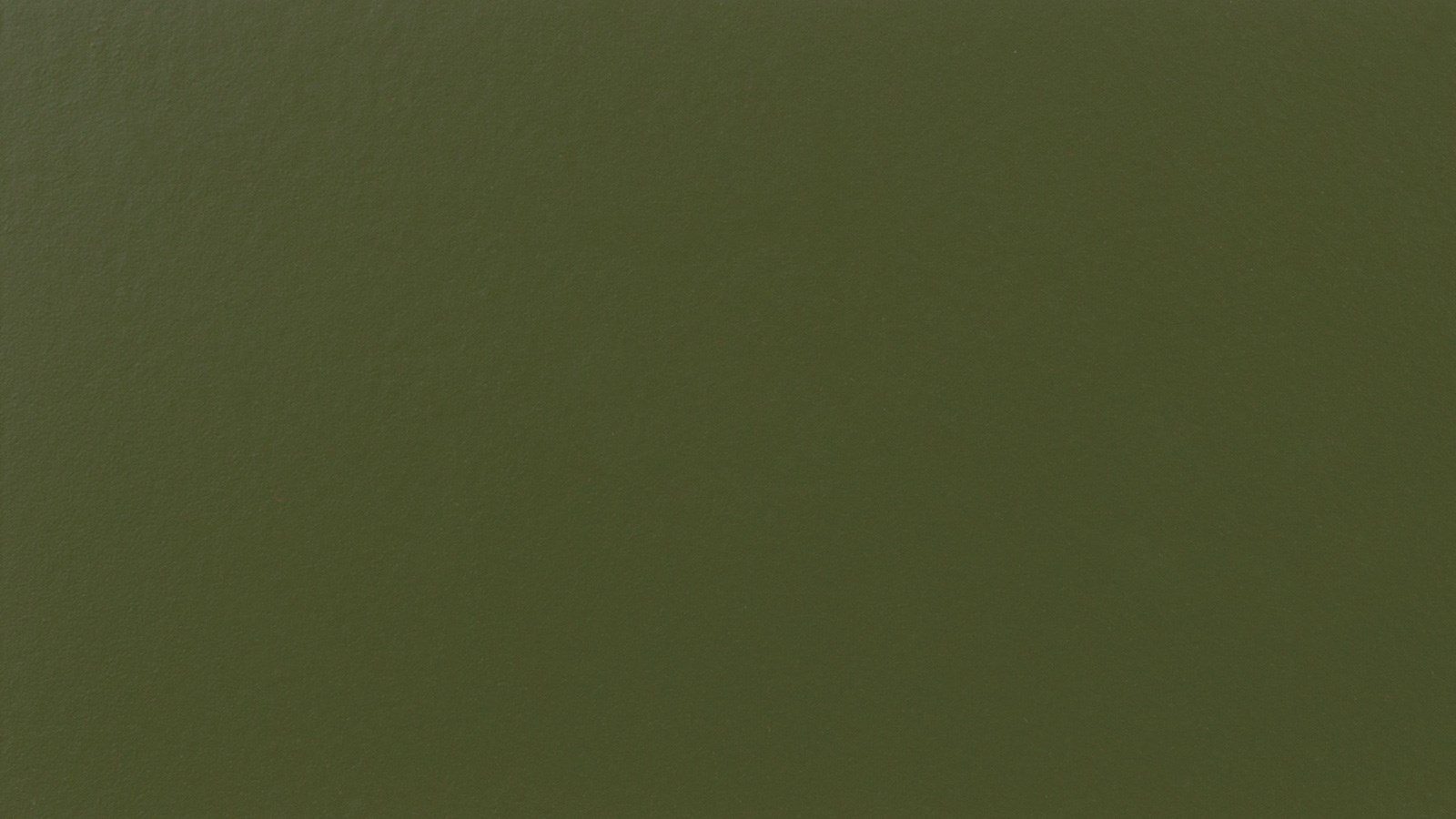

Surround® Garb

Garb is dark green.

Order a Sample

Surround® Woodlot

Woodlot is a greyish brown.

Order a Sample

Surround® Aero

Aero is a muted mint green.

Order a Sample

Surround® Maya

Maya is a bold yellow, toned down slightly.

Order a Sample

Surround® Mete

Mete is an earthy pink

Order a Sample

Surround® Husk

Husk is a warm mid brown.

Order a Sample

Surround® Gauze

Gauze is a slightly warm, grey colour.

Order a Sample

Surround® Hover

Hover is a dark blackish blue.

Order a Sample

Surround® Truss Grey

Truss Grey is a dark grey tone.

Order a Sample

Surround® Whiteout

Whiteout is a light sky blue.

Order a Sample

Surround® Blackout

Blackout is deep matt black.

Order a Sample

Surround® Quinta

Quintra is rich warm and rusty.

Order a Sample

Surround® Volta

Volta is a bright red

Order a Sample

Surround® Mainland

Mainland is a darker shade of red.

Order a Sample

Surround® Strike

Strike is an orangey red.

Order a Sample
A seamless, solid color background in a light, muted blue hue. The surface appears smooth with a slight texture, giving it a subtle, soft appearance.

Surround® Blueish Base

Textured, green surface with an intricate, embossed pattern featuring various interwoven abstract shapes and figures. The design gives a detailed and tactile appearance, resembling a chaotic, organic mural.

Surround® Blueish String

A close-up view of a light gray, textured surface that appears to be made of crumpled paper or fabric. The texture includes small crinkles and subtle folds, creating an uneven and tactile appearance.

Surround® Blueish Leather

A smooth, light grey textured background with a subtle, shimmery finish. The surface appears even and consistent, with a slight metallic sheen that catches the light.

Surround® Blueish Metal

A plain, textured surface with a soft, light gray color. There are some subtle variations in tone, giving it a slightly speckled appearance. The overall look is neutral and unadorned.

Surround® Blueish Marl

Surround® Blueish Base

A flat, smooth texture with an opaque coating.

Order a Sample

Surround® Blueish String

An intricate texture of loose fine string embossed into the surface with an opaque coating.

Order a Sample

Surround® Blueish Leather

A subtle, soft leather-like texture with an opaque coating.

Order a Sample

Surround® Blueish Metal

A smooth surface with a subtle metallic sheen when light reflects off the surface.

Order a Sample

Surround® Blueish Marl

A smooth texture with a transparent coating that reveals a fine grain sediment (marl) texture.

Order a Sample

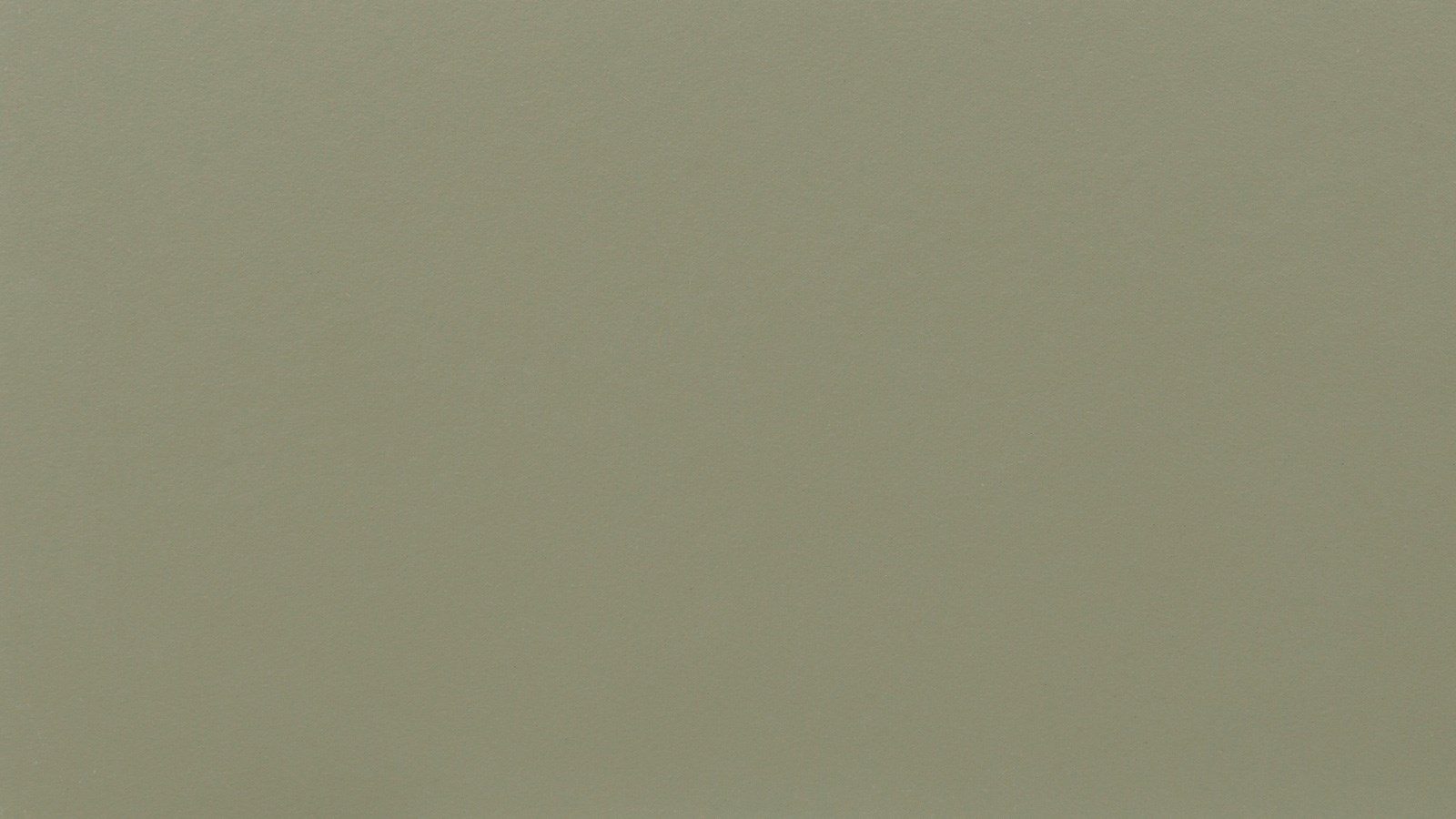

A plain, light green textured surface.

Surround® Greenish Base

A close-up view of a textured surface with an abstract wavy pattern. The surface is light green with a glossy finish, creating an intricate and somewhat chaotic design reminiscent of crumpled fabric or paper.

Surround® Greenish String

A textured light green surface with irregular, subtle creases and folds. The patterns create a slightly uneven appearance, giving the impression of crumpled but somewhat smoothed-out paper or fabric.

Surround® Greenish Leather

A seamless, textured surface with a light olive-green color. The texture appears grainy and has a subtle sparkle or shimmer throughout the material, adding a faint metallic sheen to the overall appearance.

Surround® Greenish Metal

Close-up image of a textured surface with a mix of greenish and beige hues, resembling a speckled pattern with subtle variations in color. The texture appears slightly rough and grainy.

Surround® Greenish Marl

Surround® Greenish Base

A flat, smooth texture with an opaque coating.

Order a Sample

Surround® Greenish String

An intricate texture of loose fine string embossed into the surface with an opaque coating.

Order a Sample

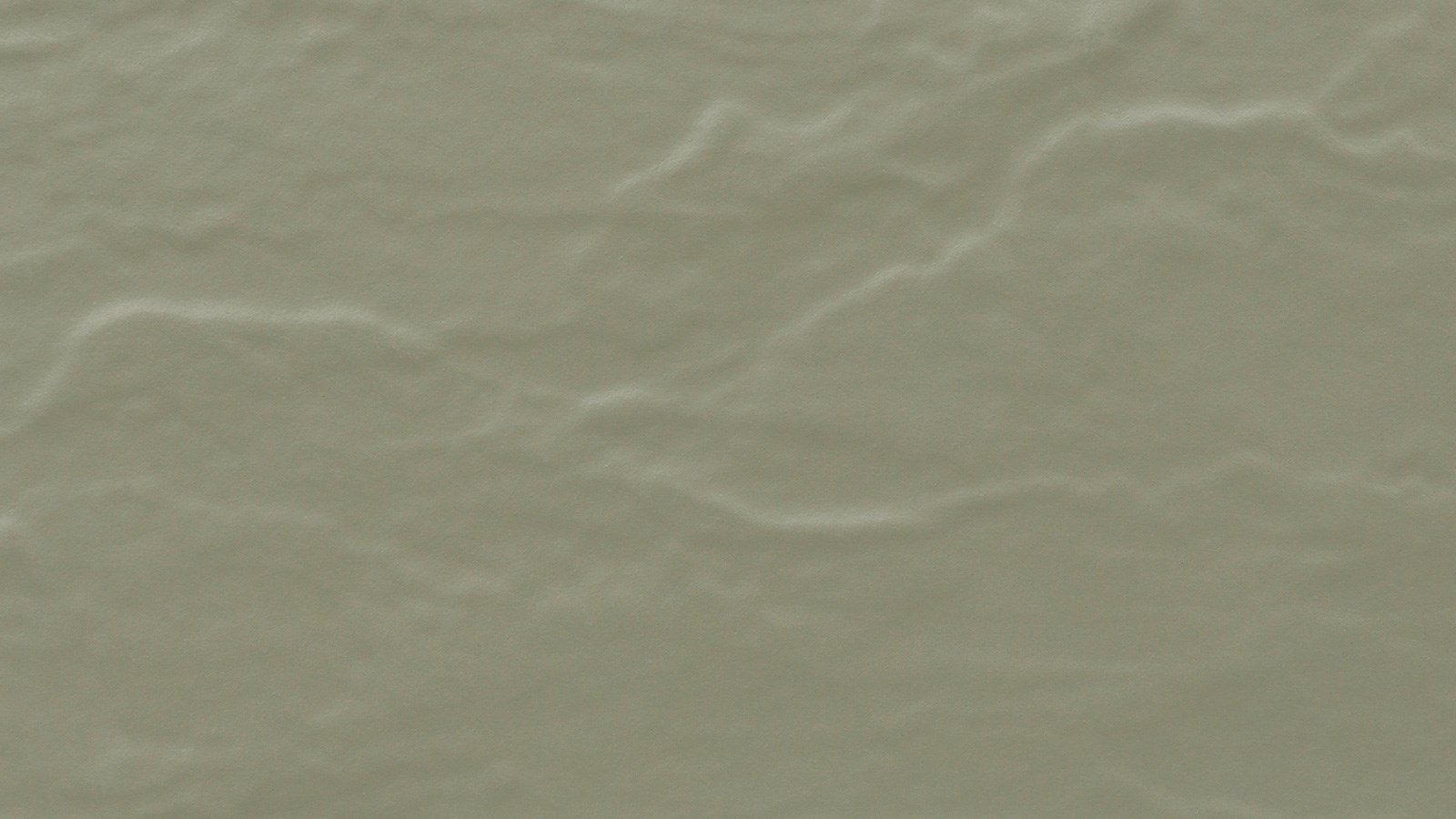

Surround® Greenish Leather

A subtle, soft leather-like texture with an opaque coating.

Order a Sample

Surround® Greenish Metal

A smooth surface with a subtle metallic sheen when light reflects off the surface.

Order a Sample

Surround® Greenish Marl

A smooth texture with a transparent coating that reveals a fine grain sediment (marl) texture.

Order a Sample
A plain, light gray, textured surface fills the entire frame with no distinguishable features or objects.

Surround® Greyish Base

A detailed close-up of a textured surface resembling crumpled fabric or embossed paper. The pattern consists of intricate, swirling lines and shapes, creating a complex and visually engaging design in shades of light gray.

Surround® Greyish String

A close-up view of a crumpled piece of white paper with a textured surface and gentle folds. The lighting highlights the creases and uneven areas, giving the paper a wrinkled appearance.

Surround® Greyish Leather

A plain, light gray texture fills the entire image. The surface appears uniform and smooth, with no discernible patterns or objects visible.

Surround® Greyish Metal

A smooth, solid, light gray background with a subtle texture, appearing uniform and plain throughout the image.

Surround® Greyish Marl

Surround® Greyish Base

A flat, smooth texture with an opaque coating.

Order a Sample

Surround® Greyish String

An intricate texture of loose fine string embossed into the surface with an opaque coating.

Order a Sample

Surround® Greyish Leather

A subtle, soft leather-like texture with an opaque coating.

Order a Sample

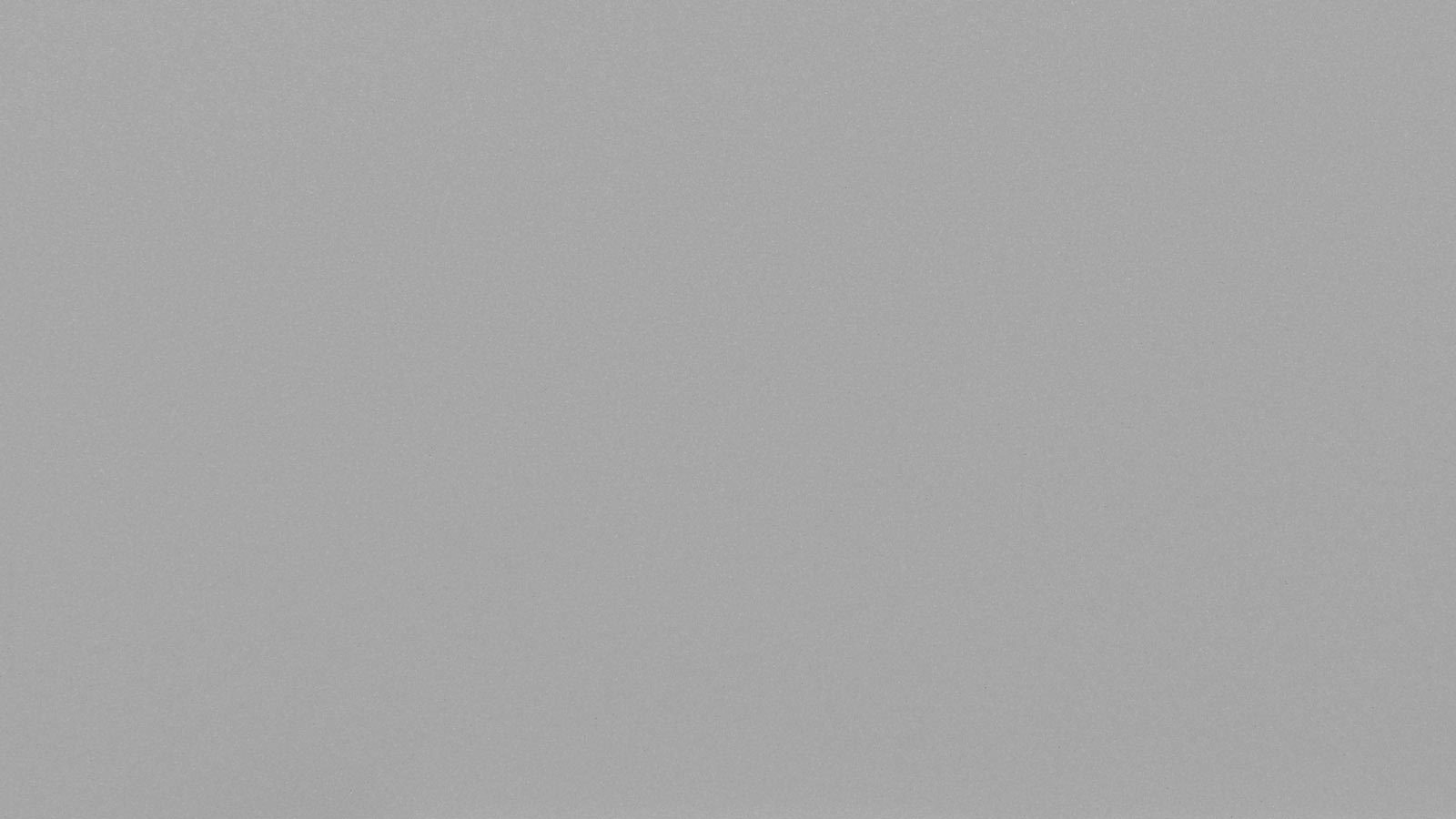

Surround® Greyish Metal

A smooth surface with a subtle metallic sheen when light reflects off the surface.

Order a Sample

Surround® Greyish Marl

A smooth texture with a transparent coating that reveals a fine grain sediment (marl) texture.

Order a Sample
A blank white background with an off-white texture, appearing mostly uniform. Slight, barely noticeable variations in shading and texture give the surface a subtle, natural look.

Surround® Whiteish Base

A close-up of a textured white surface with a subtle crinkled or wrinkled pattern. The design creates a sense of depth and a soft, irregular appearance reminiscent of creased paper or fabric.

Surround® Whiteish String

A plain, slightly textured white background with subtle, irregular patterns that resemble a gentle, uneven surface. The overall appearance is minimalist and clean, with soft, off-white tones creating a serene and understated effect.

Surround® Whiteish Leather

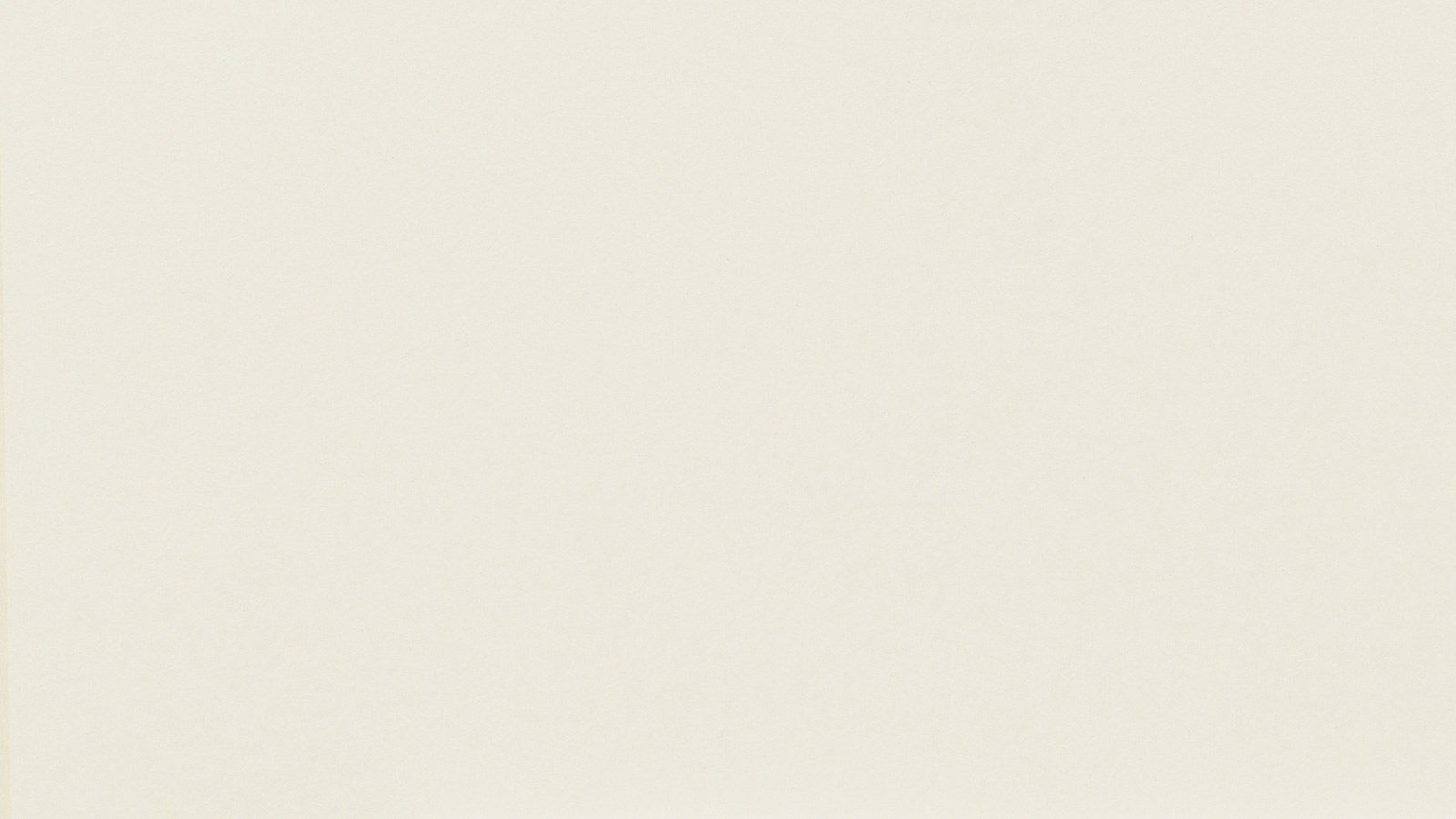

A blank, off-white textured surface, possibly from a piece of paper or wall, with a subtle beige tint. The texture is smooth and even, with minimal visible grain or pattern.

Surround® Whiteish Metal

A close-up of a blank, smooth, off-white surface. The texture appears soft and even, resembling a sheet of paper or a fabric background. There are no visible patterns or markings.

Surround® Whiteish Marl

Surround® Whiteish Base

A flat, smooth texture with an opaque coating.

Order a Sample

Surround® Whiteish String

An intricate texture of loose fine string embossed into the surface with an opaque coating.

Order a Sample

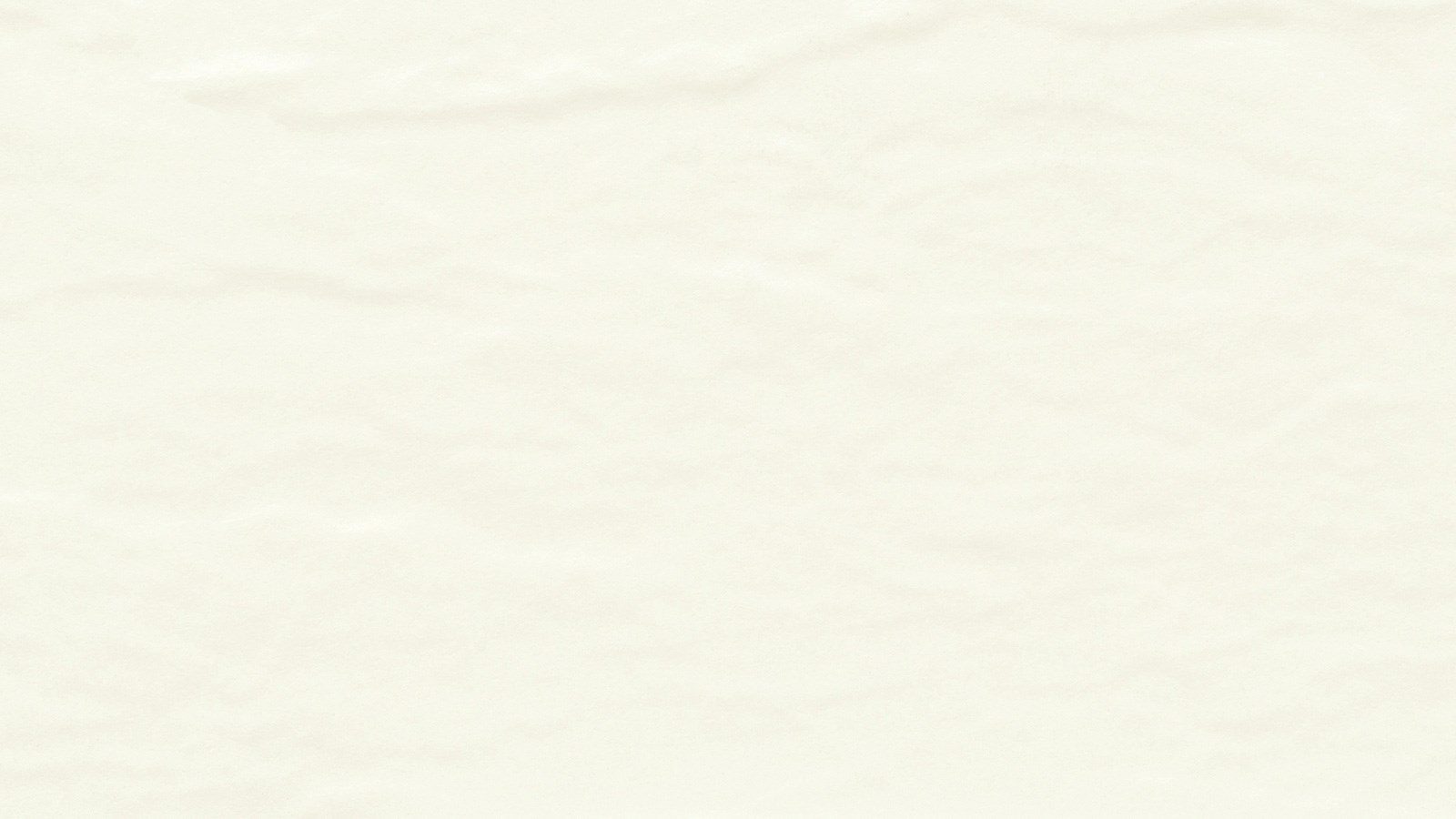

Surround® Whiteish Leather

A subtle, soft leather-like texture with an opaque coating.

Order a Sample

Surround® Whiteish Metal

A smooth surface with a subtle metallic sheen when light reflects off the surface.

Order a Sample

Surround® Whiteish Marl

A smooth texture with a transparent coating that reveals a fine grain sediment (marl) texture.

Order a Sample

Disclaimer: Product images and samples may vary from actual product regarding colour and surface finish due to the manufacturing process and raw materials used.

Technical Information

Surround Panel Information

Cemintel surround™ panels are prefinished fibre cement panels that are coloured throughout with a transparent coating (marl) or opaque coating (base, string, leather, metal) which results in a more natural appearance and depth of colour than can be achieved with a standard surface painted finish.

Consisting primarily of Portland Cement, wood pulp, reinforcement fibres, air and water, panels have undergone a longer, natural air curing process and offer superior performance in terms of strength, density, and durability. Available in a range of colours, textures & finishes, these square edged panels are manufactured in Europe under EN 12467 (fibre cement flat sheets) and are classified as Category A (for weather resistance), Class 4 (mechanical properties).

Surround Panel Specifications

PropertySpecificationManufacturing Tolerance
Panel Width1200mm+/- 1.5mm
Panel Length3000mm+/- 1.5mm
Panel Thickness8mm+/- 0.8mm
ProfileSquare Edge
Perpendicularity/squareness of edges<1mm/m
Weight (typical)15.7kg/m2 Based on dry weight
Layout OptionsHorizontal, Vertical, Curved (refer to DesignLink for custom solution)
JointingExpressed

Surround Product Specifications

Product
Code		DescriptionWidth
(mm)		Length
(mm)		Thickness
(mm)		Surface
Texture		FinishGroove
Spacing (mm)		Effective Cover
Per Unit (m2)		Effective
Width (mm)		Mass
(kg/m2)		Weight
Per Unit		Product
Warranty (Years)		BAL
162667Surround Blackish Base120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162672Surround Blackish Leather120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162662Surround Blackish Marl120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162682Surround Blackish Metal120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162677Surround Blackish String120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162666Surround Blueish Base120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162671Surround Blueish Leather120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162643Surround Blueish Marl120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162681Surround Blueish Metal120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162676Surround Blueish String120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162668Surround Greenish Base120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162673Surround Greenish Leather120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162663Surround Greenish Marl120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162683Surround Greenish Metal120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162680Surround Greenish String120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162669Surround Greyish Base120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162674Surround Greyish Leather120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162664Surround Greyish Marl120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162684Surround Greyish Metal120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162678Surround Greyish String120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162670Surround Whiteish Base120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162675Surround Whiteish Leather120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162665Surround Whiteish Marl120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162685Surround Whiteish Metal120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
162679Surround Whiteish String120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
193018Surround Aero120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
193015Surround Blackout120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167456Surround Garb120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167458Surround Gauze120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167455Surround Greenback120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
193017Surround Hover120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167452Surround Husk120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167472Surround Mainland120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167453Surround Maya120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167460Surround Mete120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
193016Surround Quinta120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
193019Surround Strike120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167459Surround Truss Grey120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167471Surround Volta120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
167457Surround Whiteout120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29
193014Surround Woodlot120030008SmoothPrefinishedn/a3.6120015.756.5210BAL-29

Technical Resources

Download all

Cleaning & Maintenance Instructions - Surround

view download

CodeMark Certificate - Surround

view download

Warranty - Surround

view download

Safety Data Sheet - Surround

view download

Fire Performance Report - Surround

view download

Fire Performance Report - Fibre Cement Cladding

view download

Design & Installation Guide - Surround Internal

view download

Design & Installation Guide - Surround External

view download

Brochure - Surround

view download

Design & Installation Guide - Barestone External & Surround on Timber Battens

view download

Technical Data Sheet - Surround

view download

BIM File - Surround

view download
View more
View less

Inspire

Latest topics, projects and people that help shape architecture, design, building and construction.

A collection of rectangular panels in various colors, including shades of gray, red, orange, green, yellow, and beige, each standing upright and arranged closely in a row, showcasing their vibrant and diverse hues.

The Surround Collection from Cemintel

Read more
A collage of three modern, angular buildings with unique architectural designs. The largest image on the right shows a building with white and beige panels against a pink sky. The two smaller images on the left showcase sharp, linear structures with wooden and metallic exteriors.

Our Collective - projects from across the country

Read more
Contemporary home in ACT clad in Territory Quarry Concrete

Five considerations when building a home

Read more
A modern, two-story house with a minimalist design is illuminated warmly from within at dusk. The house features large glass windows and a sleek exterior. A bare tree stands prominently in the foreground, and neighboring homes are visible to the left.

A guide to prefinished vs paint-on-site cladding

Read more
A white, single-story house with a gable roof and a veranda. The veranda has a decorative wooden railing and an arched entryway. Leafless trees and shrubs are in the front yard, and warm lights illuminate the porch area.

The Benefits of Fibre Cement Cladding

Read more
Modern two-story house with large windows and a broad, overhanging roof. The ground level features a fenced yard and a tall gate marked "2A." The upper level includes a spacious balcony with a glass railing, and there is contemporary landscaping around the property.

Cemintel and Hebel create homes from the outside in

Read more
A modern, single-story house with a mix of stone, wood, and dark-colored facade elements. It features a geometric roof design, a large double garage, and a well-maintained front yard with white gravel and plants. The entrance is highlighted by a narrow, covered walkway.

Get the Barestone Look

Read more
A bright room with a large arched window overlooking houses and trees. Inside, there's a wooden sink with exposed pipes, a wooden cabinet with dishes and a "Seeds" box, and a metal cart with plants and kitchenware. Walls are gray, and the floor is concrete.

Discover the versatility and beauty of Barestone

Read more
A house with a rustic and modern blend featuring a stone and wood section on the left and a white, minimalist section on the right. It is surrounded by large trees and lush vegetation, with a clear blue sky in the background.

Extension ideas in the Victorian Goldfields

Read more
A modern bar with a sleek, speckled black countertop illuminated by vibrant underlighting in green and red hues. Various bottle displays and tap handles are visible in the background, and shiny metal bar stools are positioned under the counter.

Iconic Brisbane pub gets new lease on life

Read more
A cozy outdoor patio with blue wooden siding, a white railing adorned with rope, and a dining table surrounded by green chairs. The area is decorated with wall art of surfboards and nautical elements. A towel hangs over the railing, and a potted plant adds greenery.

The Block’s Kyal and Kara reveal their latest transformation

Read more
A modern building with a white facade featuring geometric black lines, a large red circle, and gray circular patterns against a clear blue sky. Trees are partially visible on the left side of the image.

Bringing modern art to life

Read more
A two-toned image with a minimalistic geometric logo in the center, composed of three straight lines forming an abstract "F" shape on a gray textured background. The upper part of the image features a solid dark gray band.

Face Forward - the elements that influenced Surround

Read more
An assortment of rectangular material swatches arranged on a light-colored surface, featuring various textures and colors including orange, gray, wood grain, green marble, and images of concrete structures. The swatches showcase diverse design options.

Exploring the Surround Collection - Video Series

Read more

Related Product Range

  • Blackish

  • Blueish

  • Greenish

  • Greyish

  • Secondary Palette

  • Whiteish

Other Recommended Products

Find a Supplier

We have a network of suppliers ready to help you get your project up and running.

Find a supplier

Speak to an expert

Simply complete the form to get in touch with one of our Cemintel experts..

    We respect your privacy. Any personal information that you provide will be collected and used for the primary purpose of assisting you with your enquiry. You can view further details on how we manage personal information in our privacy policy.
